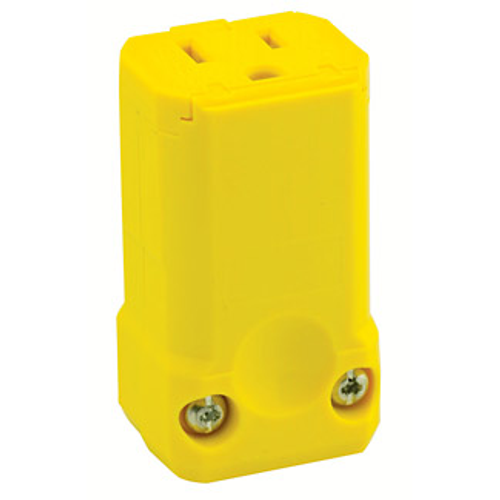

Main product image of 15A, 125V NEMA 5-15R, 2P, 3W, Connector, Straight Blade, Grounding, Python (Yellow)
Magnifying glass
Hover image to zoom

15A, 125V NEMA 5-15R, 2P, 3W, Connector, Straight Blade, Grounding, Python (Yellow)

Brand:
Leviton
SKU:
5259-VY
Rating:
(0)
Q&A:
(0)
15A, 125V NEMA 5-15R, 2P, 3W, Connector, Straight Blade, Grounding, Python (Yellow)
Magnifying glass
Hover image to zoom
$18.07 each
In Stock
In Stock
Get 2 Mon, Jul 13
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Warranty
2 years Warranty
Product Highlight: Color
Yellow
Product Highlight: Amperage
15 Amps
Product Highlight: Material
Super Tough Nylon

Description

–
Features
  • 5-15R
  • When it comes to the demanding nature of today's commercial and industrial electrical environments, ruggedness and ease of installation are the features you look for first in any line of plugs and connectors. Leviton's Python straight-blade plugs and connectors hold up under the most exacting requirements, the toughest conditions, the roughest handling. Python's exceptional design features meet your needs for a quick, easy-to-wire plug and connector system, a must in today's faced-paced world where lost minutes on a job can translate into lost profits.

Specifications
  • Amperage: 15 A
  • CSA C22.2 No. 42: File LR-406
  • Current Interrupting: Certified for current interrupting at full rated current
  • Brand: Python
  • Device Type: Straight Blade Connector
  • Pole: 2
  • Grounding: Grounding
  • NOM: 57
  • Environment: Dry
  • Body Material: Super Tough Nylon
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Wire: 3
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Blades/Contacts: Solid Brass
  • Terminal Accom.: 18-10 AWG
  • RoHS Compliant: TRUE
  • Back Cover: Thermoplastic
  • UL 498: File E13399
  • Cord Range: .245 - .700
  • NEMA: WD-6
  • Assembly Screws: Steel, Zinc Plated
  • Wire Module: Nylon
  • Dielectric Voltage: Withstands 2000V per UL498
  • Clamp Insert: Nylon
  • Flammability: Rated V-2 per UL 94
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Warranty: 2-Year Limited
  • Color: Yellow
  • Voltage: 125 VAC
  • Country of Origin: Mexico
  • Terminal Screws: Brass
  • ANSI: C-73
  • Operating Temperature: -40 °C to 60 °C
  • Cord-Clamp: Nylon

Specs

–
Poles:

2

NEMA Rating:

WD-6

Ground:

Grounding

Series:

Python

Country of Origin:

Mexico

Warranty:

2 years

Color:

Yellow

Product Type:

Straight Blade Connector

Amperage:

15

Material:

Super Tough Nylon
