$13.10 each
In Stock
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
15 Amps
Heavy-Duty Industrial
10 years Warranty
Gray
Thermoplastic Nylon
Description
–
Features
Specifications

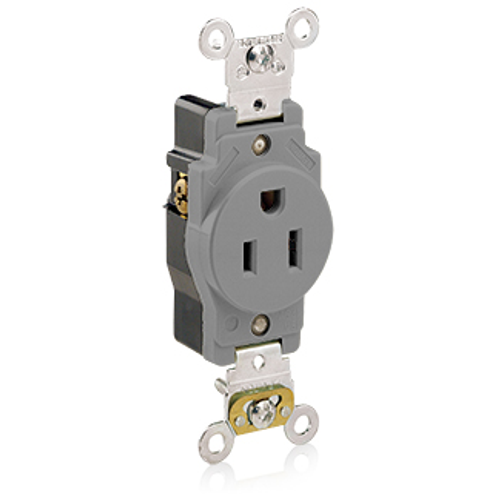

- Leviton's line of Heavy-Duty Industrial Grade Receptacles are available with a number of wiring options and features. These heavy-duty receptacles are engineered for fine appearance and top performance in demanding commercial and institutional applications using a durable, thermoplastic face and impact-resistant construction.
- 5-15R
Specifications
- Termination: Back or Side Wire
- NEMA: WD-6
- UL Fed Spec WC-596: File E13399
- Body Material: Thermoplastic Nylon
- Flammability: Rated V-2 per UL 94
- Wire: 3
- Pole: 2
- Grade: Heavy-Duty Industrial Specification Grade
- Ground Clips: Brass
- Operating Temperature: -40 °C to 60 °C
- Product ID: Ratings are permanently marked on device
- Device Type: Single Receptacle Outlet
- At Rated Voltage: 1/2 HP
- ANSI: C-73
- Feature 4: Smooth Face
- Color: Gray
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Warranty: 10-Year Limited
- Country of Origin: Please Contact Customer Service
- NOM: 57
- CSA C22.2 No. 42: File 152105
- Terminal Accom.: 14-10 AWG
- Strap Material: Zinc-Plated Steel
- Face Material: Thermoplastic Nylon
- Line Contacts: Brass Triple-Wipe
- Terminal Screws: Plated Brass
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Dielectric Voltage: Withstands 2000V per UL498
- UL498: File E13399
- Clamp Nuts: Galvanized Steel
- Current Limiting: Full Rated Current
- Torque Range: 14-16 inch pounds
- RoHS Compliant: FALSE
- Grounding: Self-Grounding
- Voltage: 125 VAC
- Amperage: 15 A
- Grounding Screw: Plated Steel
Specs
–
| NEMA Rating: | WD-6 |
|---|---|
| Poles: | 2 |
| Terminations: | Back Wire Side Wire |
| Amperage: | 15 |
| Grade: | Heavy-Duty Industrial |
| Warranty: | 10 years |
| Product Type: | Single Receptacle |
| Color: | Gray |
| Material: | Thermoplastic Nylon |
| Ground: | Self-Grounding |
