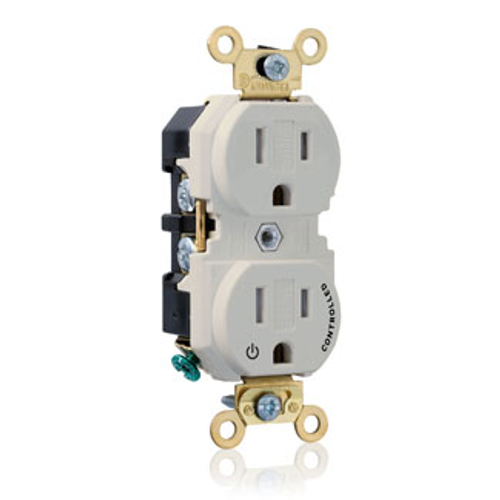

Duplex Receptacle, Extra Heavy-Duty Split-Circuit, 1 Outlet "Controlled" 15A 125V 2P 3W (Almond)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$21.85 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Extra Heavy-Duty Industrial
Nylon
Almond
10 years Warranty
15 Amps
Description
–
Features
Specifications
- 5-15R
Specifications
- ANSI: C-73
- Screw Terminal Torque: 14-18 in-lbs
- Terminal Clamp: Zinc-Plated Steel
- Operating Temperature: -40 °C to 75 °C
- At Rated Voltage: 1/2 HP
- Voltage: 125 VAC
- Pole: 2
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Termination: Back or Side Wire
- Flammability: Rated V-2 per UL 94
- Line Contacts: Triple-Wipe .040" High Performance Brass Alloy
- Face Material: Nylon
- Device Type: Duplex Receptacle Outlet
- Strap Material: Brass .050"
- NEMA: WD-1 & WD-6
- Body Material: Nylon
- Feature: Split-circuit, One Outlet Marked Controlled|Tamper-Resistant|Smooth Face
- Grounding Screw: Brass 8-32
- Wire: 3
- Grade: Extra Heavy-Duty Industrial Specification Grade
- Wire Type: Solid or Stranded Building Wire
- Color: Light Almond
- Terminal Accom.: 14-10 AWG
- Applicable Standards: UL 498, CSA C22.2 No. 42, FedSpec W-C 596
- RoHS Compliant: FALSE
- Warranty: 10-Year Limited
- Terminal Screws: Brass 10-32
- Ground Clips: Brass
- Grounding: Self-Grounding
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Dielectric Voltage: Withstands 2000V per UL498
- Certification/Listing: UL, CSA, NOM-ANCE
- Product ID: Ratings are permanently marked on device
- Amperage: 15 A
- Country of Origin: Mexico
Specs
–
| Grade: | Extra Heavy-Duty Industrial |
|---|---|
| Material: | Nylon |
| NEMA Rating: | WD-1 |
| Product Type: | Duplex Receptacle |
| Poles: | 2 |
| Terminations: | Side Wire Back Wire |
| Color: | Almond |
| Ground: | Self-Grounding |
| Warranty: | 10 years |
| Country of Origin: | Mexico |
| Amperage: | 15 |
