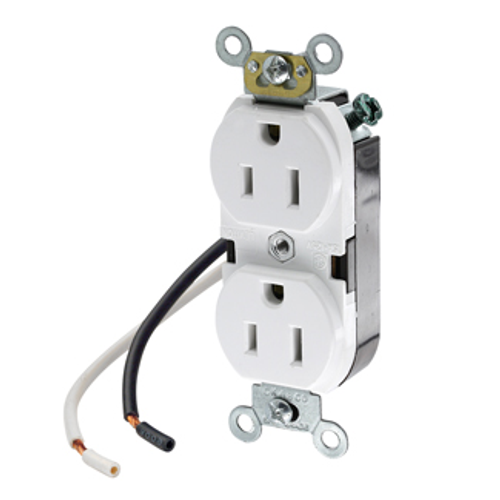

Duplex Receptacle Outlet, Smooth Face, 15A, 125V Pre-Wired Leads (hot and neutral), NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding (White)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$17.32 each
Out of Stock
Get it Wed, Jul 22 - Wed, Jul 29
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
White
10 years Warranty
15 Amps
Heavy-Duty Industrial
Description
–
Features
Specifications
- Constructed with impact-resistant thermoplastic cover and body
- Heavy gauge, locked-in wrap-around mounting strap
- Large, triple-wipe brass "T" contacts for superior contact pressure, outstanding conductivity
- 5-15R
- Leviton's line of Heavy-Duty Industrial Grade Receptacles are available with a number of wiring options and features. These heavy-duty receptacles are engineered for fine appearance and top performance in demanding commercial and institutional applications using a durable, thermoplastic face and impact-resistant construction.
- Dual drive pins for sturdy assembly
- #12 AWG THHN wire leads, 6" length
- Backed by a Limited 10-Year Warranty
Specifications
- Current Interrupting: Certified for current interrupting at full rated current
- Amperage: 15 A
- Terminal Leads: 6", #12 AWG THHN
- Maximum Working Voltage: 125V as rated
- Flammability: Rated V-2 per UL 94
- Base Material: Thermoplastic
- Dielectric Voltage Withstand: 2000V minimum per UL 498
- Feature 4: Smooth Face
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Mounting Strap: Steel multipiece with 2 drive pins
- Grounding: Self-Grounding
- ANSI: C-73
- Lead Identification: Leads identified in accordance with UL 498
- UL 498: File E13399
- Voltage: 125 VAC
- Pole: 2
- Power Contacts: Phosphor Bronze, triple wipe
- CSA C22.2 No. 42: File 152105
- Screw Terminal Torque: 14-18 in-lbs
- Bushing: Die Cast
- Warranty: 10-Year Limited
- Device Type: Duplex Receptacle Outlet
- RoHS Compliant: FALSE
- NEMA: WD-6
- Country of Origin: Mexico
- Color: White
- Wiring: 1 Hot Lead, 1 Neutral Lead
- NOM: 57
- Standards and Certifications: UL/CSA
- Product ID: Ratings are permanently marked on device
- Wire: 3
- Termination: Pre-Wired Leads (hot and neutral)
- Grade: Heavy-Duty Industrial Specification Grade
- Operating Temperature: -40 °C to 60 °C
- Mounting Screws: Triple Combination Head, Steel
- Cover Material: Thermoplastic
Specs
–
| Ground: | Self-Grounding |
|---|---|
| Product Type: | Duplex Receptacle |
| Terminations: | Pre-Wired Leads |
| NEMA Rating: | WD-6 |
| Country of Origin: | Mexico |
| Color: | White |
| Poles: | 2 |
| Warranty: | 10 years |
| Amperage: | 15 |
| Grade: | Heavy-Duty Industrial |
