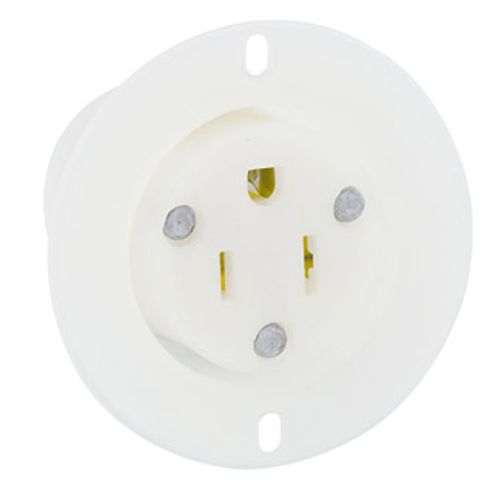

Main product image of 15A, 125V NEMA 5-15r, 2p, 3w, Flanged Outlet Receptacle, Straight Blade, Grounding, Back Wired, Thermoplastic Nylon Strap (White)
Magnifying glass
Hover image to zoom

15A, 125V NEMA 5-15r, 2p, 3w, Flanged Outlet Receptacle, Straight Blade, Grounding, Back Wired, Thermoplastic Nylon Strap (White)

Brand:
Leviton
SKU:
5279-C
Rating:
(0)
Q&A:
(0)
15A, 125V NEMA 5-15r, 2p, 3w, Flanged Outlet Receptacle, Straight Blade, Grounding, Back Wired, Thermoplastic Nylon Strap (White)
Magnifying glass
Hover image to zoom
$13.54 each
In Stock
In Stock
Get 12 Tue, Oct 6
Order by today, receive Tuesday

MANUALS (1)

Product Overview
Product Overview
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Material
Super Tough Nylon
Product Highlight: Color
White
Product Highlight: Amperage
15 Amps
Product Highlight: Warranty
Lifetime Limited Warranty

Description

–
Features
  • 5-15R
  • Leviton's Straight Blade Power Outlets are suitable for industrial indoor and outdoor applications. Glass-filled thermoplastic cover and plate provides outstanding impact resistance and durability. Stainless steel external hardware resists corrosive effects of moisture as dual gaskets, one under plate and one under lid, provide for a superior weather-resistant fit.

Specifications
  • Torque Range: 10-14 in-lbs
  • Face Material: Nylon
  • NEMA: WD-6
  • Flammability: Rated V-2 per UL 94
  • Wire Module: Nylon
  • Warranty: Limited Lifetime Warranty Warranty
  • NOM: 57
  • Voltage: 125 VAC
  • Body Material: Super Tough Nylon
  • ANSI: C-73
  • Assembly Screws: Steel, Zinc Plated
  • Terminal Screws: Brass
  • Operating Temperature: -40 °C to 60 °C
  • Wire: 3
  • Current Interrupting: Certified for current interrupting at full rated current
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • UL 498: File E13399
  • Blades/Contacts: Solid Brass
  • Device Type: Straight Blade Flanged Inlet
  • Dielectric Voltage: Withstands 2000V per UL498
  • CSA C22.2 No. 42: File LR-406
  • Strap Material: Thermoplastic Nylon
  • Grounding: Grounding
  • UL Fed Spec WC-596: File E13393
  • Brand: Black and White
  • Pole: 2
  • Environment: Dry
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Color: White
  • Country of Origin: Mexico
  • Termination: Back
  • Amperage: 15 A
  • Screw Terminal Torque: 10-14 in-lbs
  • RoHS Compliant: TRUE
  • Terminal Accom.: 18-10 AWG

Specs

–
Terminations:

Back Wire

Country of Origin:

Mexico

Series:

Black & White

Material:

Super Tough Nylon

Color:

White

Amperage:

15

Poles:

2

Warranty:

Lifetime Limited

NEMA Rating:

WD-6

Ground:

Grounding

Product Type:

Straight Blade Flanged Inlet
