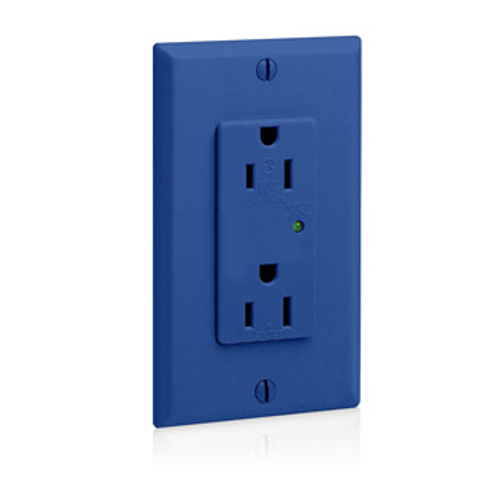

Main product image of Decora Plus SuRGe Protective Duplex Receptacle Outlet, 15A, 125V Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire (Blue)
Magnifying glass
Hover image to zoom

Decora Plus SuRGe Protective Duplex Receptacle Outlet, 15A, 125V Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire (Blue)

Brand:
Leviton
SKU:
5280-B
Rating:
(0)
Q&A:
(0)
Decora Plus SuRGe Protective Duplex Receptacle Outlet, 15A, 125V Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire (Blue)
Magnifying glass
Hover image to zoom
$52.16 each
Out of Stock
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Amperage
15 Amps
Product Highlight: Color
Blue
Product Highlight: Grade
Commercial
Product Highlight: Material
Thermoplastic Nylon
Product Highlight: Warranty
5 years Warranty

Description

–
Features
  • 5-15R
  • Leviton's Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are compliant with UL 1449 Standards. Leviton's outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.

Specifications
  • Pole: 2
  • Short Circuit Current Rating: 5kA
  • Face Material: Thermoplastic Nylon
  • Terminal Screws: Brass-Plated Steel
  • Joules Rating: 720
  • Shutter Mechanism: Delrin Acetal
  • Warranty: 5-Year Limited
  • RoHS Compliant: FALSE
  • Grade: Commercial Specification Grade
  • Dielectric Voltage: Withstands 2000V per UL498
  • Yoke: Zinc-Plated Steel
  • NEMA: WD-6
  • Wire: 3
  • Device Type: Duplex Receptacle Outlet
  • Product ID: Ratings are permanently marked on device
  • Country of Origin: Mexico
  • Noise Rejection: -30dB at 500kHz-30MHz
  • Termination: Back or Side Wire
  • Terminal Accom.: 14-10 AWG
  • NOM: 57
  • Diagnostics: Indicator Light
  • Body Material: Thermoplastic Nylon
  • Screw Terminal Torque: 14-18 in-lbs
  • Color: Blue
  • Grounding Screw: Brass-Plated Steel
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • MCOV: 150V rms
  • Clamp Nuts: Zinc-Plated Steel
  • Voltage: 125 VAC
  • Maximum Surge Current, Per Mode (Per Phase): 27kA (L-N:18kA, L-G:9kA)
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Current Limiting: Full Rated Current
  • VPR: L-N: 600V, L-G: 700V, N-G: 600V
  • Agency Certifications: UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3
  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40 °C to 60 °C
  • Brand: Decora Plus
  • Torque Range: 14-16 inch pounds
  • Line Contacts: Brass Triple-Wipe
  • Amperage: 15 A
  • Nominal Discharge Current Rating: 3kA
  • Function: Surge Protective
  • ANSI: C-73

Specs

–
Amperage:

15

Color:

Blue

Series:

Decora Plus

Country of Origin:

Mexico

Grade:

Commercial

Terminations:

Side Wire

Back Wire

Poles:

2

Material:

Thermoplastic Nylon

Warranty:

5 years

NEMA Rating:

WD-6

Product Type:

Duplex Receptacle
