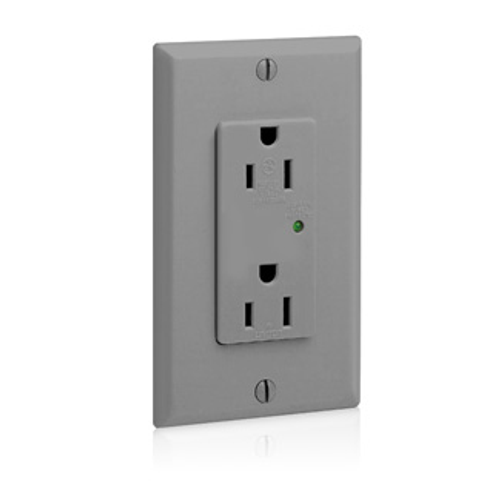

15A, 125V Decora Plus SuRGe Protective Duplex Receptacle Outlet, Commercial Grade (Gray)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$52.16 each
Out of Stock
Get it Thu, Jul 23 - Thu, Jul 30
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
5 years Warranty
Thermoplastic Nylon
15 Amps
Commercial
Gray
Description
–
Features
Specifications
- 5-15R
- Leviton's Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are compliant with UL 1449 Standards. Leviton's outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.
Specifications
- Grade: Commercial Specification Grade
- Voltage: 125 VAC
- Termination: Back or Side Wire
- Maximum Surge Current, Per Mode (Per Phase): 27kA (L-N:18kA, L-G:9kA)
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Clamp Nuts: Zinc-Plated Steel
- Terminal Screws: Brass-Plated Steel
- Amperage: 15 A
- Short Circuit Current Rating: 5kA
- Wire: 3
- NOM: 57
- Nominal Discharge Current Rating: 3kA
- Operating Temperature: -40 °C to 60 °C
- Warranty: 5-Year Limited
- Diagnostics: Indicator Light
- Noise Rejection: -30dB at 500kHz-30MHz
- Body Material: Thermoplastic Nylon
- Torque Range: 14-16 inch pounds
- NEMA: WD-6
- Country of Origin: Mexico
- Dielectric Voltage: Withstands 2000V per UL498
- Joules Rating: 720
- VPR: L-N: 600V, L-G: 700V, N-G: 600V
- Device Type: Duplex Receptacle Outlet
- Agency Certifications: UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3
- Product ID: Ratings are permanently marked on device
- RoHS Compliant: FALSE
- Flammability: Rated V-2 per UL 94
- Color: Gray
- Function: Surge Protective
- Brand: Decora Plus
- Grounding Screw: Brass-Plated Steel
- Yoke: Zinc-Plated Steel
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Line Contacts: Brass Triple-Wipe
- Shutter Mechanism: Delrin Acetal
- Pole: 2
- ANSI: C-73
- Current Limiting: Full Rated Current
- MCOV: 150V rms
- Terminal Accom.: 14-10 AWG
- Face Material: Thermoplastic Nylon
Specs
–
| Warranty: | 5 years |
|---|---|
| Material: | Thermoplastic Nylon |
| Terminations: | Side Wire Back Wire |
| Product Type: | Duplex Receptacle |
| Amperage: | 15 |
| Grade: | Commercial |
| NEMA Rating: | WD-6 |
| Color: | Gray |
| Poles: | 2 |
| Country of Origin: | Mexico |
| Series: | Decora Plus |
