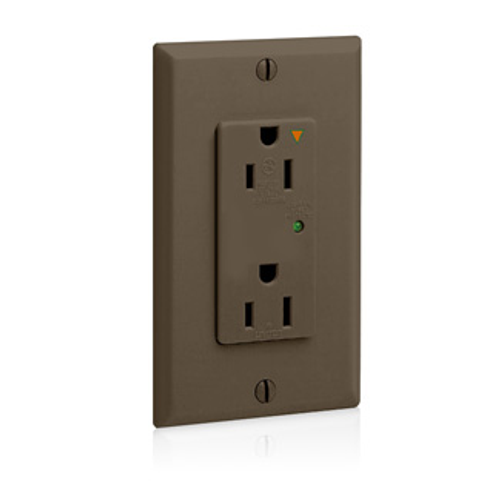

Decora Plus SuRGe Protective Isolated Ground Duplex Receptacle Outlet, 15A, 125V Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire (Brown)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$56.31 each
Out of Stock
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Commercial
15 Amps
5 years Warranty
Brown
Description
–
Features
Specifications
- Leviton's Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are compliant with UL 1449 Standards. Leviton's outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.
- 5-15R
Specifications
- Clamp Nuts: Zinc-Plated Steel
- Dielectric Voltage: Withstands 2000V per UL498
- Warranty: 5-Year Limited
- Short Circuit Current Rating: 5kA
- Torque Range: 14-16 inch pounds
- Function: Surge Protective
- Flammability: Rated V-2 per UL 94
- NEMA: WD-6
- Voltage: 125 VAC
- Grounding Screw: Brass-Plated Steel
- Current Limiting: Full Rated Current
- Termination: Back or Side Wire
- Color: Brown
- Joules Rating: 720
- Grade: Commercial Specification Grade
- Maximum Surge Current, Per Mode (Per Phase): 27kA (L-N:18kA, L-G:9kA)
- Device Type: Duplex Receptacle Outlet
- Nominal Discharge Current Rating: 3kA
- VPR: L-N: 600V, L-G: 700V, N-G: 600V
- Brand: Decora Plus
- NOM: 57
- RoHS Compliant: FALSE
- ANSI: C-73
- Country of Origin: Mexico
- MCOV: 150V rms
- Wire: 3
- Amperage: 15 A
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Body Material: Thermoplastic Nylon
- Diagnostics: Indicator Light
- Terminal Screws: Brass-Plated Steel
- Terminal Accom.: 14-10 AWG
- Product ID: Ratings are permanently marked on device
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Noise Rejection: -30dB at 500kHz-30MHz
- Pole: 2
- Face Material: Thermoplastic Nylon
- Agency Certifications: UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3
- Operating Temperature: -40 °C to 60 °C
- Yoke: Zinc-Plated Steel
- Line Contacts: Brass Triple-Wipe
- Shutter Mechanism: Delrin Acetal
Specs
–
| Terminations: | Back Wire Side Wire |
|---|---|
| Country of Origin: | Mexico |
| Poles: | 2 |
| Grade: | Commercial |
| NEMA Rating: | WD-6 |
| Amperage: | 15 |
| Product Type: | Duplex Receptacle |
| Warranty: | 5 years |
| Color: | Brown |
| Series: | Decora Plus |
