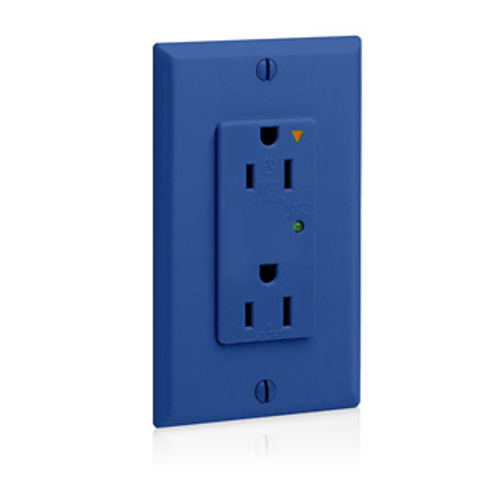

Main product image of Decora Plus SuRGe Protective Isolated Ground Duplex Receptacle Outlet, 15A, 125V Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire (Blue)
Magnifying glass
Hover image to zoom

Decora Plus SuRGe Protective Isolated Ground Duplex Receptacle Outlet, 15A, 125V Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire (Blue)

Brand:
Leviton
SKU:
5280-IGB
Rating:
(0)
Q&A:
(0)
Decora Plus SuRGe Protective Isolated Ground Duplex Receptacle Outlet, 15A, 125V Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire (Blue)
Magnifying glass
Hover image to zoom
$56.31 each
Out of Stock
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Grade
Commercial
Product Highlight: Amperage
15 Amps
Product Highlight: Warranty
5 years Warranty
Product Highlight: Color
Blue
Product Highlight: Material
Thermoplastic Nylon

Description

–
Features
  • Leviton's Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are compliant with UL 1449 Standards. Leviton's outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.
  • 5-15R

Specifications
  • Amperage: 15 A
  • Operating Temperature: -40 °C to 60 °C
  • MCOV: 150V rms
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Yoke: Zinc-Plated Steel
  • Current Limiting: Full Rated Current
  • Color: Blue
  • Brand: Decora Plus
  • Body Material: Thermoplastic Nylon
  • Warranty: 5-Year Limited
  • Nominal Discharge Current Rating: 3kA
  • Torque Range: 14-16 inch pounds
  • Wire: 3
  • Maximum Surge Current, Per Mode (Per Phase): 27kA (L-N:18kA, L-G:9kA)
  • Pole: 2
  • Function: Surge Protective
  • Noise Rejection: -30dB at 500kHz-30MHz
  • NOM: 57
  • Face Material: Thermoplastic Nylon
  • Clamp Nuts: Zinc-Plated Steel
  • Diagnostics: Indicator Light
  • Grade: Commercial Specification Grade
  • Device Type: Duplex Receptacle Outlet
  • Product ID: Ratings are permanently marked on device
  • Country of Origin: Mexico
  • Terminal Accom.: 14-10 AWG
  • Joules Rating: 720
  • Short Circuit Current Rating: 5kA
  • RoHS Compliant: FALSE
  • Grounding Screw: Brass-Plated Steel
  • Line Contacts: Brass Triple-Wipe
  • Dielectric Voltage: Withstands 2000V per UL498
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Agency Certifications: UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3
  • VPR: L-N: 600V, L-G: 700V, N-G: 600V
  • ANSI: C-73
  • Termination: Back or Side Wire
  • Flammability: Rated V-2 per UL 94
  • Voltage: 125 VAC
  • NEMA: WD-6
  • Terminal Screws: Brass-Plated Steel
  • Shutter Mechanism: Delrin Acetal

Specs

–
Country of Origin:

Mexico

Terminations:

Back Wire

Side Wire

NEMA Rating:

WD-6

Grade:

Commercial

Amperage:

15

Warranty:

5 years

Product Type:

Duplex Receptacle

Color:

Blue

Material:

Thermoplastic Nylon

Series:

Decora Plus

Poles:

2
