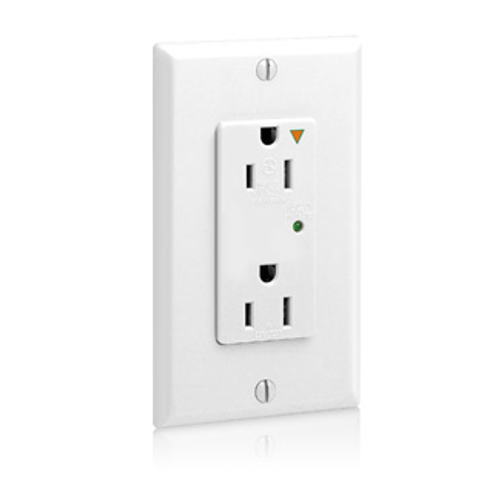

Decora Plus SuRGe Protective Isolated Ground Duplex Receptacle Outlet, 15A, 125V Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire - White
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$56.31 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Commercial
White
5 years Warranty
Thermoplastic Nylon
15 Amps
Description
–
Features
Specifications
- Leviton's Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are compliant with UL 1449 Standards. Leviton's outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.
- 5-15R
Specifications
- Noise Rejection: -30dB at 500kHz-30MHz
- Color: White
- Short Circuit Current Rating: 5kA
- Country of Origin: Mexico
- Face Material: Thermoplastic Nylon
- Shutter Mechanism: Delrin Acetal
- Diagnostics: Indicator Light
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Grade: Commercial Specification Grade
- Operating Temperature: -40 °C to 60 °C
- NOM: 57
- VPR: L-N: 600V, L-G: 700V, N-G: 600V
- Pole: 2
- ANSI: C-73
- Yoke: Zinc-Plated Steel
- RoHS Compliant: FALSE
- Termination: Back or Side Wire
- Terminal Accom.: 14-10 AWG
- Flammability: Rated V-2 per UL 94
- Clamp Nuts: Zinc-Plated Steel
- Agency Certifications: UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3
- Warranty: 5-Year Limited
- Dielectric Voltage: Withstands 2000V per UL498
- Line Contacts: Brass Triple-Wipe
- Current Limiting: Full Rated Current
- Device Type: Duplex Receptacle Outlet
- NEMA: WD-6
- Torque Range: 14-16 inch pounds
- Joules Rating: 720
- Nominal Discharge Current Rating: 3kA
- MCOV: 150V rms
- Terminal Screws: Brass-Plated Steel
- Amperage: 15 A
- Brand: Decora Plus
- Function: Surge Protective
- Maximum Surge Current, Per Mode (Per Phase): 27kA (L-N:18kA, L-G:9kA)
- Product ID: Ratings are permanently marked on device
- Grounding Screw: Brass-Plated Steel
- Body Material: Thermoplastic Nylon
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Wire: 3
- Voltage: 125 VAC
Specs
–
| NEMA Rating: | WD-6 |
|---|---|
| Grade: | Commercial |
| Terminations: | Back Wire Side Wire |
| Color: | White |
| Series: | Decora Plus |
| Warranty: | 5 years |
| Country of Origin: | Mexico |
| Product Type: | Duplex Receptacle |
| Poles: | 2 |
| Material: | Thermoplastic Nylon |
| Amperage: | 15 |
