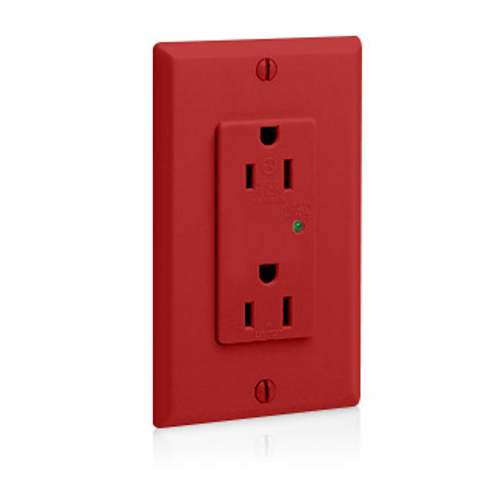

Decora Plus SuRGe Protective Duplex Receptacle Outlet, 15A, 125V Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Red
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$52.16 each
Out of Stock
Get it Thu, Jul 23 - Thu, Jul 30
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Red
Commercial
Thermoplastic Nylon
15 Amps
5 years Warranty
Description
–
Features
Specifications
- Leviton's Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are compliant with UL 1449 Standards. Leviton's outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.
- 5-15R
Specifications
- Face Material: Thermoplastic Nylon
- Agency Certifications: UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3
- Terminal Screws: Brass-Plated Steel
- Line Contacts: Brass Triple-Wipe
- Diagnostics: Indicator Light
- Operating Temperature: -40 °C to 60 °C
- Voltage: 125 VAC
- Dielectric Voltage: Withstands 2000V per UL498
- Warranty: 5-Year Limited
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Joules Rating: 720
- NEMA: WD-6
- Body Material: Thermoplastic Nylon
- Shutter Mechanism: Delrin Acetal
- Torque Range: 14-16 inch pounds
- Function: Surge Protective
- Terminal Accom.: 14-10 AWG
- Yoke: Zinc-Plated Steel
- Flammability: Rated V-2 per UL 94
- Device Type: Duplex Receptacle Outlet
- Short Circuit Current Rating: 5kA
- Brand: Decora Plus
- Grounding Screw: Brass-Plated Steel
- VPR: L-N: 600V, L-G: 700V, N-G: 600V
- Pole: 2
- Color: Red
- Grade: Commercial Specification Grade
- ANSI: C-73
- Amperage: 15 A
- Wire: 3
- NOM: 57
- Termination: Back or Side Wire
- MCOV: 150V rms
- Maximum Surge Current, Per Mode (Per Phase): 27kA (L-N:18kA, L-G:9kA)
- Current Limiting: Full Rated Current
- Noise Rejection: -30dB at 500kHz-30MHz
- Country of Origin: Mexico
- Clamp Nuts: Zinc-Plated Steel
- RoHS Compliant: FALSE
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Product ID: Ratings are permanently marked on device
- Nominal Discharge Current Rating: 10kA
Specs
–
| Color: | Red |
|---|---|
| Grade: | Commercial |
| Product Type: | Duplex Receptacle |
| Material: | Thermoplastic Nylon |
| NEMA Rating: | WD-6 |
| Country of Origin: | Mexico |
| Terminations: | Back Wire Side Wire |
| Poles: | 2 |
| Amperage: | 15 |
| Warranty: | 5 years |
| Series: | Decora Plus |
