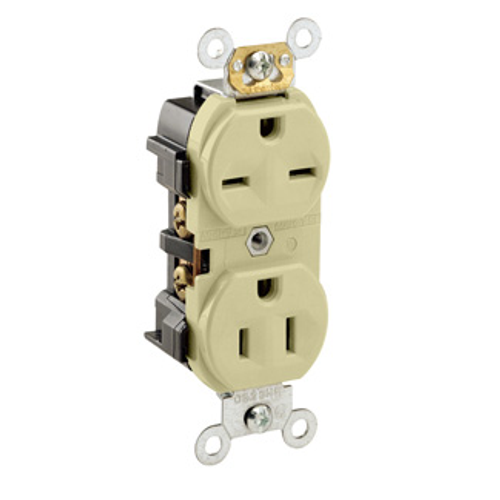

Main product image of Duplex Receptacle Outlet, Dual Voltage, Smooth Face, 15A, 125/250V Side Wire, NEMA 5-15R_6-15R, 2-Pole, 3-Wire, Self-Grounding (Ivory)
Magnifying glass
Hover image to zoom

Duplex Receptacle Outlet, Dual Voltage, Smooth Face, 15A, 125/250V Side Wire, NEMA 5-15R_6-15R, 2-Pole, 3-Wire, Self-Grounding (Ivory)

Brand:
Leviton
SKU:
5292-I
Rating:
(0)
Q&A:
(0)
Duplex Receptacle Outlet, Dual Voltage, Smooth Face, 15A, 125/250V Side Wire, NEMA 5-15R_6-15R, 2-Pole, 3-Wire, Self-Grounding (Ivory)
Magnifying glass
Hover image to zoom
$20.26 each
Out of Stock
Out of Stock
Get it Fri, Jul 24 - Fri, Jul 31
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Material
Thermoplastic Nylon
Product Highlight: Grade
Heavy-Duty Industrial
Product Highlight: Amperage
15 Amps
Product Highlight: Warranty
10 years Warranty
Product Highlight: Color
Ivory

Description

–
Features
  • 5-15R_6-15R
  • Leviton's line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.

Specifications
  • CSA C22.2 No. 42: File 152105
  • Terminal Accom.: 14-10 AWG
  • Flammability: Rated V-2 per UL 94
  • Amperage: 15 A
  • Voltage: 125/250 VAC
  • Operating Temperature: -40 °C to 60 °C
  • UL498: File E13399
  • Current Limiting: Full Rated Current
  • NOM: 57
  • Body Material: Thermoplastic Nylon
  • Wire: 3
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Color: Ivory
  • Torque Range: 14-16 inch pounds
  • Pole: 2
  • At Rated Voltage: 1/2 HP 125V/1-1/2 HP 250V
  • Grounding: Self-Grounding
  • NEMA: WD-6
  • Country of Origin: Mexico
  • RoHS Compliant: FALSE
  • Termination: Side Wire
  • Dielectric Voltage: Withstands 2000V per UL498
  • Product ID: Ratings are permanently marked on device
  • UL Fed Spec WC-596: File E13399
  • Warranty: 10-Year Limited
  • Feature 4: Smooth Face
  • Grade: Heavy-Duty Industrial Specification Grade
  • ANSI: C-73
  • Face Material: Thermoplastic Nylon
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Line Contacts: Phosphor Bronze
  • Device Type: Duplex Receptacle Outlet
  • Screw Terminal Torque: 14-18 in-lbs
  • Terminal Screws: Plated Brass
  • Feature 3: Dual Voltage
  • Grounding Screw: Plated Steel
  • Strap Material: Galvanized Steel with Riveted Ground Contacts
  • Ground Clips: Brass

Specs

–
Material:

Thermoplastic Nylon

Terminations:

Side Wire

Grade:

Heavy-Duty Industrial

Amperage:

15

Country of Origin:

Mexico

Poles:

2

NEMA Rating:

WD-6

Warranty:

10 years

Product Type:

Duplex Receptacle

Ground:

Self-Grounding

Color:

Ivory
