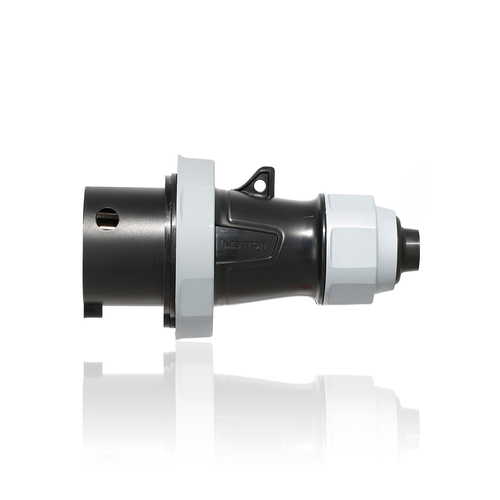

30A 347/600V 3PH, 4P, 5W, IEC 60309-1 & 60309-2 Pin & Sleeve Plug w/ Screwless Clamp (Black)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$289.32 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
30 Amps
Black
5 years Warranty
600V
Description
–
Features
Specifications
- Completely screwless back clamp cuts installation time and adds additional dust guard protection
- Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long-term submersion
- NSF certified sanitary design trusted for use in food & beverage facilities Leviton Pin & Sleeve devices are UL listed components and suitable for use in prefabricated wiring assemblies when wired in accordance with UL1007. Calculate Time & Money Saved with the LEV Series Calculator!
- LEV Series IEC Pin & Sleeve Devices are designed to simplify your installation, endure the harshest environments and improve safety and productivity:
Specifications
- Conductor Range: #10 AWG to #8 AWG
- Phase: 3-Phase
- Overload UL20 Test: 50 cycles
- RoHS: RoHS compliant components
- Warranty: 5-Year Limited
- Grommet/Gasket: NBR/Buna N
- Clock Position: 5 o'clock
- NOM: NOM ANCE standards
- Product Markings: Brand, UL, CE and environmental ratings molded in. Item number, ampacity, voltage, phases, HP, NSF on label
- Configuration: North American
- Impact: Drop from 30" 8 times after conditioning to -25 °C, for 6 hoursDrop from 72" after conditioning to -35 °C, for 6 hours
- Dielectric Voltage: 3000V for 1 min.
- IEC Rating: 60309-1, 60309-2
- Flammability: Rated V-0 (Contact Carrier), HB or better (Housing) per UL94
- NSF: 14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment
- Voltage: 347/600 VAC
- Series: LEV Series
- Wire: 5
- Feature: Screwless Clamp Assembly
- Temperature Rise: Max 30 °C rise at full rated current (after overload)
- Endurance: 1000 cycles rated V and I load, 1000 cycles no-load (30A)
- Crush Test: 250 lbs for 1 min after -25 °C for 6 hrs
- Terminal Screws: 303 Stainless Steel
- Corrosion Resistance: Salt fog tested
- Housing: Impact Modified Nylon
- UL: UL 1686 C2, UL 1682
- NEMA Enclosure Type: 3R, 4X, 6P and 12
- Horsepower Rating: 15 HP
- Device Type: Plug
- Max. Voltage: 600V
- Current Interrupting: Certified for current interrupting at full-rated current and voltage
- SCCR: 200kA
- Lockout/Tagout Provision: Lockout hole on housing
- Locking Ring: Impact Modified Nylon
- Color: Black
- IP Rating: IP66, IP67, IP68, IP69K
- Screw Terminal Torque: 20 in-lb
- Contact Carrier Assembly Screw Torque: 8 in-lb
- CSA: CSA C22.2 No 182.1-13 (Harmonized with UL 1682)
- CE: CE certification
- UV Resistance: UV stabilized F1 rated housings
- Assembly Screws: 303 Stainless Steel
- Cable Clamp Screw Torque: 10 in-lb
- Pole: 4
- Amperage: 30 A
- Hardware Head Type: Hex style socket screws for terminals, combination screws for all others
- Contact Carrier: Glass filled Nylon
- Country of Origin: Mexico
- RoHS Compliant: FALSE
Specs
–
| Country of Origin: | Mexico |
|---|---|
| Amperage: | 30 |
| Poles: | 4 |
| Product Type: | Plug |
| Color: | Black |
| Warranty: | 5 years |
| Voltage: | 600V |
