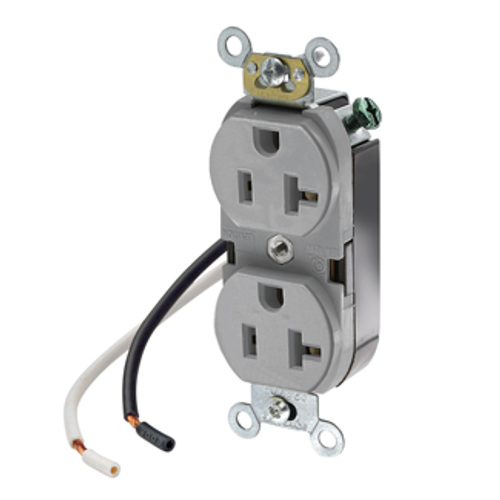

Duplex Receptacle Outlet, Smooth Face, 20A, 125V Pre-Wired Leads (hot and neutral), NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding, Gray
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$7.50 each
In Stock
Order by today, receive Friday
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
10 years Warranty
Commercial
Gray
20 Amps
Description
–
Features
Specifications
- Leviton's line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
- 5-20R
Specifications
- Termination: Pre-Wired Leads (hot and neutral)
- Color: Gray
- Grounding Screw: Plated Steel
- Grounding: Self-Grounding
- Cover Material: Thermoplastic
- Product ID: Ratings are permanently marked on device
- UL498: File E13399
- NEMA: WD-6
- Warranty: 10-Year Limited
- Screw Terminal Torque: 14-18 in-lbs
- NOM: 57
- Terminal Leads: 6", #12 AWG THHN
- Operating Temperature: -40 °C to 60 °C
- At Rated Voltage: 1 HP
- Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
- Flammability: Rated V-2 per UL 94
- Mounting Screws: Triple Combination Head, Steel
- RoHS Compliant: FALSE
- Amperage: 20 A
- Feature 4: Smooth Face
- Device Type: Duplex Receptacle Outlet
- Dielectric Voltage Withstand: 2000V minimum per UL 498
- Grade: Commercial Specification Grade
- Current Interrupting: Certified for current interrupting at full rated current
- Pole: 2
- Power Contacts: Brass, triple wipe
- CSA C22.2 No. 42: File 152105
- Ground Clips: Brass
- Country of Origin: Mexico
- Mounting Strap: Galvanized Steel with Riveted Ground Contacts
- Maximum Working Voltage: 125V as rated
- Base Material: Thermoplastic
- Lead Identification: Leads identified in accordance with UL 498 (black, white & green)
- ANSI: C-73
- Voltage: 125 VAC
- Bushing: Die Cast Aluminum
- Wire: 3
Specs
–
| Poles: | 2 |
|---|---|
| Warranty: | 10 years |
| Country of Origin: | Mexico |
| NEMA Rating: | WD-6 |
| Grade: | Commercial |
| Product Type: | Duplex Receptacle |
| Terminations: | Pre-Wired Leads |
| Ground: | Self-Grounding |
| Color: | Gray |
| Amperage: | 20 |
