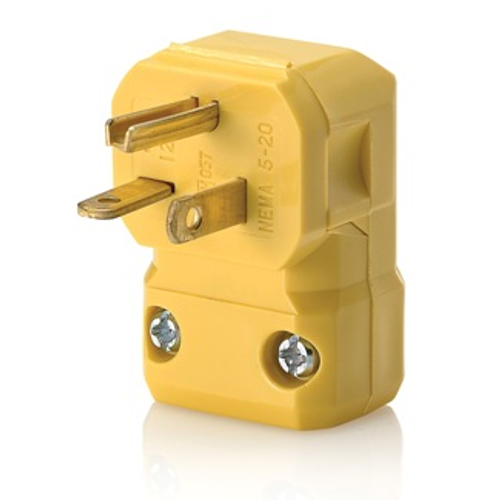

20A, 125V NEMA 5-20P, 2P, 3W, Plug, Straight Blade, Grounding, Python Angle (Yellow)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$17.72 each
Out of Stock
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
2 years Warranty
20 Amps
Yellow
Super Tough Nylon
Description
–
Features
Specifications
- When it comes to the demanding nature of today's commercial and industrial electrical environments, ruggedness and ease of installation are the features you look for first in any line of plugs and connectors. Leviton's Python straight-blade plugs and connectors hold up under the most exacting requirements, the toughest conditions, the roughest handling. Python's exceptional design features meet your needs for a quick, easy-to-wire plug and connector system, a must in today's faced-paced world where lost minutes on a job can translate into lost profits.
- 5-20P
Specifications
- Back Cover: Thermoplastic
- CSA C22.2 No. 42: File LR-406
- Product ID: Ratings and NEMA I.D. permanently marked on device
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Pole: 2
- Terminal Accom.: 18-10 AWG
- NOM: 57
- Cord-Clamp: Nylon
- Blades/Contacts: Solid Brass
- UL 498: File E13399
- Amperage: 20 A
- Terminal Screws: Brass
- Color: Yellow
- RoHS Compliant: TRUE
- Cord Range: .245 - .700
- Current Interrupting: Certified for current interrupting at full rated current
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Assembly Screws: Steel, Zinc Plated
- Operating Temperature: -40 °C to 60 °C
- Flammability: Rated V-2 per UL 94
- Wire: 3
- Clamp Insert: Nylon
- Grounding: Grounding
- ANSI: C-73
- Body Material: Super Tough Nylon
- Warranty: 2-Year Limited
- Country of Origin: Mexico
- Voltage: 125 VAC
- Wire Module: Nylon
- Dielectric Voltage: Withstands 2000V per UL498
- NEMA: WD-6
Specs
–
| Warranty: | 2 years |
|---|---|
| Country of Origin: | Mexico |
| Amperage: | 20 |
| Ground: | Grounding |
| Poles: | 2 |
| NEMA Rating: | WD-6 |
| Color: | Yellow |
| Material: | Super Tough Nylon |
