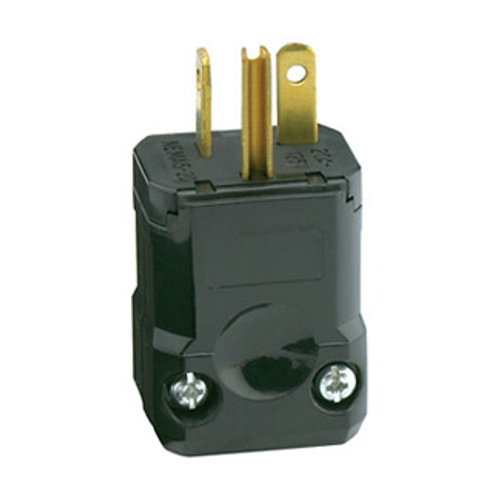

20A, 125V NEMA 5-20P, 2P, 3W, Plug, Straight Blade, Grounding, Python (Black)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$15.41 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Super Tough Nylon
Black
2 years Warranty
20 Amps
Description
–
Features
Specifications
- When it comes to the demanding nature of today's commercial and industrial electrical environments, ruggedness and ease of installation are the features you look for first in any line of plugs and connectors. Leviton's Python straight-blade plugs and connectors hold up under the most exacting requirements, the toughest conditions, the roughest handling. Python's exceptional design features meet your needs for a quick, easy-to-wire plug and connector system, a must in today's faced-paced world where lost minutes on a job can translate into lost profits.
- 5-20P
Specifications
- Environment: Dry
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Operating Temperature: -40 °C to 60 °C
- CSA C22.2 No. 42: File LR-406
- Terminal Accom.: 18-10 AWG
- NEMA: WD-6
- Brand: Python
- Grounding: Grounding
- Voltage: 125 VAC
- Assembly Screws: Steel, Zinc Plated
- Blades/Contacts: Solid Brass
- Body Material: Super Tough Nylon
- Amperage: 20 A
- Color: Black
- Cord-Clamp: Nylon
- NOM: 57
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Device Type: Straight Blade Plug
- Product ID: Ratings and NEMA I.D. permanently marked on device
- Cord Range: .245 - .700
- Wire Module: Nylon
- Warranty: 2-Year Limited
- ANSI: C-73
- Torque Range: 12-14 in-lbs
- Flammability: Rated V-2 per UL 94
- Wire: 3
- Current Interrupting: Certified for current interrupting at full rated current
- Clamp Insert: Nylon
- Pole: 2
- UL 498: File E13399
- RoHS Compliant: TRUE
- Country of Origin: Mexico
- Dielectric Voltage: Withstands 2000V per UL498
- Terminal Screws: Brass
- Back Cover: Thermoplastic
Specs
–
| Country of Origin: | Mexico |
|---|---|
| Product Type: | Straight Blade Plug |
| Poles: | 2 |
| Material: | Super Tough Nylon |
| Color: | Black |
| Series: | Python |
| NEMA Rating: | WD-6 |
| Warranty: | 2 years |
| Amperage: | 20 |
| Ground: | Grounding |
