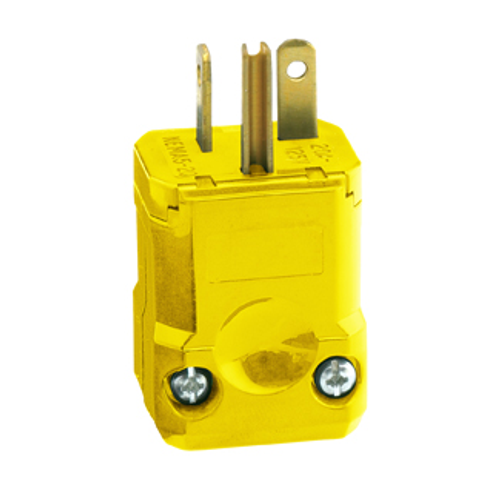

20A, 125V NEMA 5-20P, 2P, 3W, Plug, Straight Blade, Grounding, Python (Yellow)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$15.22 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
2 years Warranty
Yellow
Super Tough Nylon
20 Amps
Description
–
Features
Specifications
- When it comes to the demanding nature of today's commercial and industrial electrical environments, ruggedness and ease of installation are the features you look for first in any line of plugs and connectors. Leviton's Python straight-blade plugs and connectors hold up under the most exacting requirements, the toughest conditions, the roughest handling. Python's exceptional design features meet your needs for a quick, easy-to-wire plug and connector system, a must in today's faced-paced world where lost minutes on a job can translate into lost profits.
- 5-20P
Specifications
- Blades/Contacts: Solid Brass
- Color: Yellow
- Grounding: Grounding
- NEMA: WD-6
- NOM: 57
- Terminal Screws: Brass
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Flammability: Rated V-2 per UL 94
- Operating Temperature: -40 °C to 60 °C
- RoHS Compliant: TRUE
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- CSA C22.2 No. 42: File LR-406
- Wire Module: Nylon
- Dielectric Voltage: Withstands 2000V per UL498
- Amperage: 20 A
- Torque Range: 12-14 in-lbs
- Device Type: Straight Blade Plug
- Voltage: 125 VAC
- Cord Range: .245 - .700
- Current Interrupting: Certified for current interrupting at full rated current
- Terminal Accom.: 18-10 AWG
- Product ID: Ratings and NEMA I.D. permanently marked on device
- Assembly Screws: Steel, Zinc Plated
- ANSI: C-73
- Warranty: 2-Year Limited
- Clamp Insert: Nylon
- UL 498: File E13399
- Wire: 3
- Country of Origin: Mexico
- Cord-Clamp: Nylon
- Environment: Dry
- Back Cover: Thermoplastic
- Brand: Python
- Body Material: Super Tough Nylon
- Pole: 2
Specs
–
| Warranty: | 2 years |
|---|---|
| Series: | Python |
| NEMA Rating: | WD-6 |
| Color: | Yellow |
| Material: | Super Tough Nylon |
| Poles: | 2 |
| Product Type: | Straight Blade Plug |
| Ground: | Grounding |
| Country of Origin: | Mexico |
| Amperage: | 20 |
