$15.28 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Thermoplastic Nylon
White
20 Amps
10 years Warranty
Heavy-Duty Industrial
Description
–
Features
Specifications

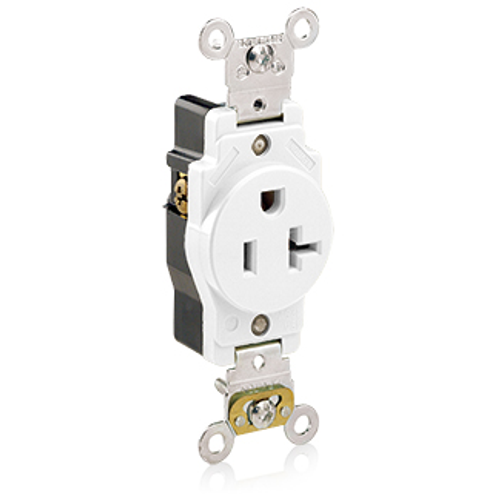

- 5-20R
- Leviton's line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
Specifications
- Grade: Heavy-Duty Industrial Specification Grade
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Grounding: Self-Grounding
- Color: White
- Terminal Accom.: 14-10 AWG
- Dielectric Voltage: Withstands 2000V per UL498
- NOM: 57
- Face Material: Thermoplastic Nylon
- UL498: File E13399
- Warranty: 10-Year Limited
- CSA C22.2 No. 42: File 152105
- Device Type: Single Receptacle Outlet
- Pole: 2
- Body Material: Thermoplastic Nylon
- Clamp Nuts: Galvanized Steel
- Current Limiting: Full Rated Current
- Torque Range: 14-16 inch pounds
- Operating Temperature: -40 °C to 60 °C
- Screw Terminal Torque: 14-18 in-lbs
- Voltage: 125 VAC
- Termination: Back or Side Wire
- At Rated Voltage: 1 HP
- Grounding Screw: Plated Steel
- RoHS Compliant: FALSE
- Ground Clips: Brass
- Feature 4: Smooth Face
- Amperage: 20 A
- Wire: 3
- UL Fed Spec WC-596: File E13399
- Product ID: Ratings are permanently marked on device
- NEMA: WD 1 & WD 6
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Line Contacts: Brass Triple-Wipe
- ANSI: C-73
- Strap Material: Zinc-Plated Steel
- Country of Origin: Please Contact Customer Service
- Terminal Screws: Plated Brass
- Flammability: Rated V-2 per UL 94
Specs
–
| NEMA Rating: | WD-1 WD-6 |
|---|---|
| Product Type: | Single Receptacle |
| Material: | Thermoplastic Nylon |
| Ground: | Self-Grounding |
| Color: | White |
| Amperage: | 20 |
| Terminations: | Back Wire Side Wire |
| Warranty: | 10 years |
| Grade: | Heavy-Duty Industrial |
| Poles: | 2 |
