$24.37 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

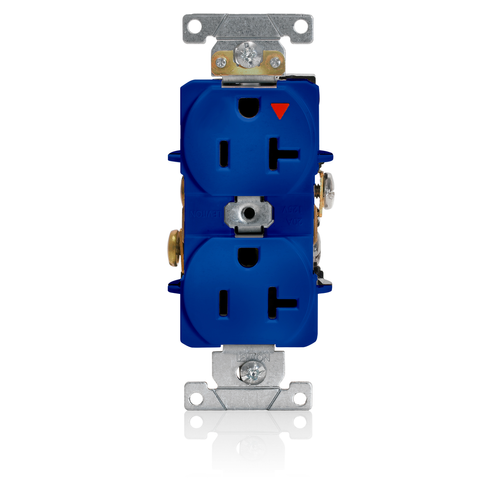

Product Highlights
–
PBT, Polyester Blend
Heavy-Duty Industrial
10 years Warranty
20 Amps
Blue
Description
–
Features
Specifications
- 5-20R
- Leviton's line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
Specifications
- Function: Isolated Ground
- Pole: 2
- Termination: Back and Side Wire
- Color: Blue
- Face Material: PBT Polyester Blend
- Wire: 3
- Screw Terminal Torque: 14-18 in-lbs
- UL Fed Spec WC-596: File E13399
- Terminal ID: Brass-Hot, Silver-Neutral, Green-Ground
- Grade: Heavy-Duty Industrial Specification Grade
- Grounding Screw: #8 Hex Head, Triple-Drive Brass
- ANSI: C-73
- Terminal Screws: #8 Triple-Drive Brass
- Dielectric Voltage: Withstands 3000 V min
- Strap Material: Steel (Galvanized G60)
- Operating Temperature: -40 °C to 75 °C
- Terminal Accom.: #14-#10 AWG
- CSA C22.2 No. 42: File 152105
- UL498: File E13399
- Country of Origin: Mexico
- Feature 4: Smooth Face
- Amperage: 20 A
- Line Contacts: 0.030" Phosphor Bronze
- Device Type: Duplex Receptacle Outlet
- Product ID: Ratings are permanently part of devices
- NEMA: WD-1 & WD-6
- Voltage: 125 VAC
- RoHS Compliant: TRUE
- Temperature Rise: Max 30C temperature rise at full rated current
- Warranty: 10-Year Limited
- Body Material: PBT Polyester Blend
- At Rated Voltage: 1 HP
- NOM: 57
- Flammability: Rated V-0 per UL 94
- Grounding: Self-Grounding
Specs
–
| Terminations: | Back Wire Side Wire |
|---|---|
| Material: | PBT Polyester Blend |
| Grade: | Heavy-Duty Industrial |
| Ground: | Self-Grounding |
| Warranty: | 10 years |
| Amperage: | 20 |
| Poles: | 2 |
| Product Type: | Duplex Receptacle |
| Country of Origin: | Mexico |
| Color: | Blue |
| NEMA Rating: | WD-1 |
