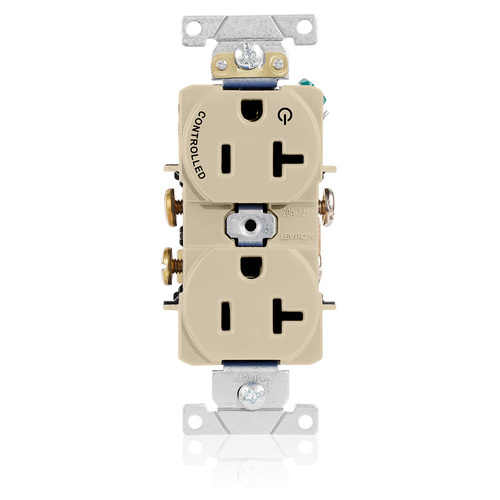

Duplex Receptacle, Heavy-Duty Industrial, Split-Circuit, 20A 125V NEMA 5-20R, 2P 3W (Ivory)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$19.68 each
Out of Stock
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Ivory
20 Amps
Heavy-Duty Industrial
10 years Warranty
Description
–
Features
Specifications
- Leviton offers custom imprinting solutions to meet the 2014 National Electrical Code requirements for identifying receptacles that will be automatically de-energized as part of an overall plug load control program. All 15A & 20A, 125V receptacles that are automatically controlled will be marked with a specific symbol.
- 5-20R
Specifications
- Ground Clips: Brass
- Screw Terminal Torque: 14-18 in-lbs
- Device Type: Duplex Receptacle Outlet
- Body Material: Nylon
- Termination: Back or Side Wire
- Terminal Clamp: Zinc-Plated Steel
- Grounding Screw: Brass 8-32
- Terminal Screws: Brass 10-32
- Feature: Split-circuit, One Outlet Marked Controlled|Smooth Face
- Terminal Accom.: 14-10 AWG
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Product ID: Ratings are permanently marked on device
- Pole: 2
- Warranty: 10-Year Limited
- Wire Type: Solid or Stranded Building Wire
- RoHS Compliant: TRUE
- Color: Ivory
- Flammability: Rated V-2 per UL 94
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Grounding: Self-Grounding
- Strap Material: Brass .050"
- Certification/Listing: UL, CSA, NOM-ANCE
- Operating Temperature: -40 °C to 75 °C
- Line Contacts: Triple-Wipe .040" High Performance Brass Alloy
- Face Material: Nylon
- NEMA: WD-1 & WD-6
- At Rated Voltage: 1 HP
- Voltage: 125 VAC
- Applicable Standards: UL 498, CSA C22.2 No. 42, FedSpec W-C 596
- Grade: Heavy-Duty Industrial Specification Grade
- Wire: 3
- Amperage: 20 A
- Dielectric Voltage: Withstands 2000V per UL498
- Country of Origin: Mexico
- ANSI: C-73
Specs
–
| Poles: | 2 |
|---|---|
| Color: | Ivory |
| Terminations: | Back Wire Side Wire |
| Ground: | Self-Grounding |
| Amperage: | 20 |
| Grade: | Heavy-Duty Industrial |
| NEMA Rating: | WD-1 |
| Product Type: | Duplex Receptacle |
| Warranty: | 10 years |
| Country of Origin: | Mexico |
