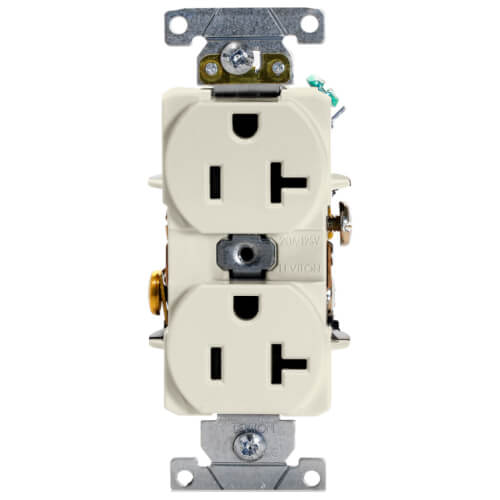

Heavy-Duty Industrial Specification Grade, Narrow Body, Duplex Receptacle, 2P, 20A - Light Almond (125V)

Note: This model is not tamper resistant. Please check your local electrical code to confirm this product has been approved in your area.

Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 20 Amp, 125 Volt, Back and Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Light Almond

Leviton’s line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.

Specifications:

• AC Horsepower Rating: 1 HP
• Amperage: 20 A
• Dielectric Voltage: Withstands 2000V per UL498
• Grounding: Self-Grounding
• Pole: 2
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• Voltage: 125 VAC
• Wire: 3
• Flammability: Rated V-0 per UL 94
• Operating Temperature: -40°C to 60°C
• Termination: Back and Side Wire
• Feature 4: Smooth Face
• Grade: Heavy-Duty Industrial Specification Grade
• Grounding: Self-Grounding
• NEMA: 5-20R

Standards & Certifications:

• ANSI: C-73
• CSA C22.2 No. 42: File 152105
• NEMA: WD-1 & WD-6
• NOM: 057
• UL Fed Spec WC-596: File E13399
• UL498: File E13399
• Warranty: 10-Year Limited
