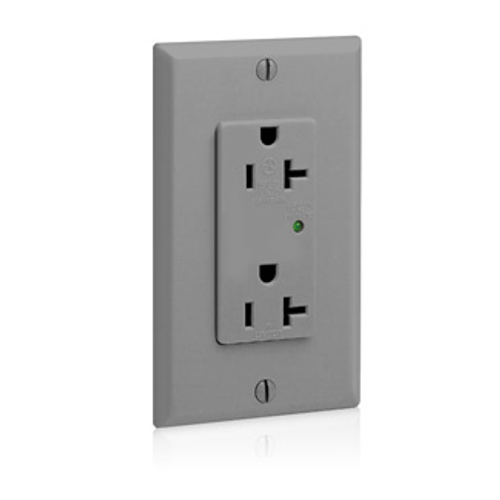

20A, 125V Decora Plus SuRGe Protective Duplex Receptacle Outlet, Commercial Grade (Gray)

Brand:
Leviton
SKU:
5380-GY
Rating:
(0)
Q&A:
(0)
20A, 125V Decora Plus SuRGe Protective Duplex Receptacle Outlet, Commercial Grade (Gray)
Magnifying glass
Hover image to zoom
$59.06 each
Out of Stock
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Material
Thermoplastic Nylon
Product Highlight: Grade
Commercial
Product Highlight: Color
Gray
Product Highlight: Amperage
20 Amps
Product Highlight: Warranty
5 years Warranty

Description

–
Features
  • 5-20R
  • Leviton's Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are compliant with UL 1449 Standards. Leviton's outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.

Specifications
  • ANSI: C-73
  • Pole: 2
  • Clamp Nuts: Zinc-Plated Steel
  • RoHS Compliant: FALSE
  • Nominal Discharge Current Rating: 3kA
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Warranty: 5-Year Limited
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Country of Origin: Mexico
  • Product ID: Ratings are permanently marked on device
  • MCOV: 150V rms
  • NEMA: WD-6
  • Joules Rating: 720
  • Function: Surge Protective
  • Line Contacts: Brass Triple-Wipe
  • Voltage: 125 VAC
  • Agency Certifications: UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3
  • Noise Rejection: -30dB at 500kHz-30MHz
  • Torque Range: 14-16 inch pounds
  • Brand: Decora Plus
  • Current Limiting: Full Rated Current
  • Shutter Mechanism: Delrin Acetal
  • NOM: 57
  • Termination: Back or Side Wire
  • Grade: Commercial Specification Grade
  • Terminal Accom.: 14-10 AWG
  • Face Material: Thermoplastic Nylon
  • Dielectric Voltage: Withstands 2000V per UL498
  • Body Material: Thermoplastic Nylon
  • Operating Temperature: -40 °C to 60 °C
  • Color: Gray
  • Yoke: Zinc-Plated Steel
  • Device Type: Duplex Receptacle Outlet
  • Grounding Screw: Brass-Plated Steel
  • Short Circuit Current Rating: 5kA
  • Flammability: Rated V-2 per UL 94
  • VPR: L-N: 600V, L-G: 700V, N-G: 600V
  • Wire: 3
  • Maximum Surge Current, Per Mode (Per Phase): 27kA (L-N:18kA, L-G:9kA)
  • Terminal Screws: Brass-Plated Steel
  • Diagnostics: Indicator Light
  • Amperage: 20 A
  • At Rated Voltage: 1 HP

Specs

–
Country of Origin:

Mexico

Material:

Thermoplastic Nylon

Grade:

Commercial

NEMA Rating:

WD-6

Product Type:

Duplex Receptacle

Color:

Gray

Terminations:

Back Wire

Side Wire

Amperage:

20

Warranty:

5 years

Series:

Decora Plus

Poles:

2
