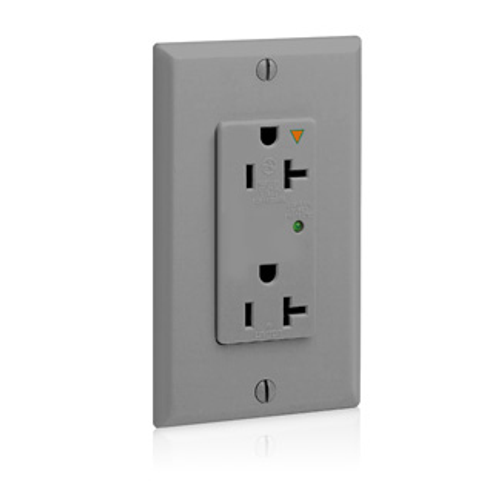

Main product image of Decora Plus SuRGe Protective Isolated Ground Duplex Receptacle Outlet, 20A, 125V Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Gray
Magnifying glass
Hover image to zoom

Decora Plus SuRGe Protective Isolated Ground Duplex Receptacle Outlet, 20A, 125V Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Gray

Brand:
Leviton
SKU:
5380-IGG
Rating:
(0)
Q&A:
(0)
Decora Plus SuRGe Protective Isolated Ground Duplex Receptacle Outlet, 20A, 125V Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Gray
Magnifying glass
Hover image to zoom
$64.46 each
Out of Stock
Out of Stock
Get it Wed, Jul 22 - Wed, Jul 29
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Warranty
5 years Warranty
Product Highlight: Material
Thermoplastic Nylon
Product Highlight: Grade
Commercial
Product Highlight: Amperage
20 Amps
Product Highlight: Color
Gray

Description

–
Features
  • 5-20R
  • Leviton's Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are compliant with UL 1449 Standards. Leviton's outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.

Specifications
  • Flammability: Rated V-2 per UL 94
  • Color: Gray
  • Short Circuit Current Rating: 5kA
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • NOM: 57
  • Amperage: 20 A
  • Warranty: 5-Year Limited
  • Joules Rating: 720
  • Terminal Accom.: 14-10 AWG
  • Diagnostics: Indicator Light
  • Country of Origin: Mexico
  • Function: Surge Protective Isolated Ground
  • Noise Rejection: -30dB at 500kHz-30MHz
  • Agency Certifications: UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3
  • Face Material: Thermoplastic Nylon
  • MCOV: 150V rms
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings are permanently marked on device
  • Pole: 2
  • Torque Range: 14-16 inch pounds
  • Grounding Screw: Brass-Plated Steel
  • Grade: Commercial Specification Grade
  • Shutter Mechanism: Delrin Acetal
  • Terminal Screws: Brass-Plated Steel
  • Brand: Decora Plus
  • Wire: 3
  • Device Type: Duplex Receptacle Outlet
  • At Rated Voltage: 1 HP
  • VPR: L-N: 600V, L-G: 700V, N-G: 600V
  • Voltage: 125 VAC
  • ANSI: C-73
  • Nominal Discharge Current Rating: 3kA
  • RoHS Compliant: FALSE
  • Line Contacts: Brass Triple-Wipe
  • Operating Temperature: -40 °C to 60 °C
  • Current Limiting: Full Rated Current
  • Maximum Surge Current, Per Mode (Per Phase): 27kA (L-N:18kA, L-G:9kA)
  • Yoke: Zinc-Plated Steel
  • Termination: Back or Side Wire
  • Clamp Nuts: Zinc-Plated Steel
  • NEMA: WD-6
  • Dielectric Voltage: Withstands 2000V per UL498
  • Body Material: Thermoplastic Nylon

Specs

–
Warranty:

5 years

Series:

Decora Plus

Terminations:

Side Wire

Back Wire

Country of Origin:

Mexico

NEMA Rating:

WD-6

Material:

Thermoplastic Nylon

Grade:

Commercial

Amperage:

20

Color:

Gray

Poles:

2

Product Type:

Duplex Receptacle
