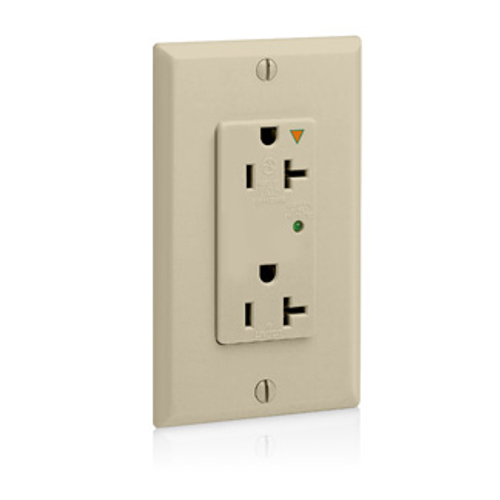

Decora Plus Surge Protective Isolated Ground Duplex Receptacle Outlet, 20A, 125V Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire - Ivory

Brand:
Leviton
SKU:
5380-IGI
Rating:
(0)
Q&A:
(0)
Decora Plus Surge Protective Isolated Ground Duplex Receptacle Outlet, 20A, 125V Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire - Ivory
Magnifying glass
Hover image to zoom
$64.46 each
Out of Stock
Out of Stock
Get it Mon, Jul 27 - Mon, Aug 3
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Amperage
20 Amps
Product Highlight: Grade
Commercial
Product Highlight: Warranty
5 years Warranty
Product Highlight: Material
Thermoplastic Nylon
Product Highlight: Color
Ivory

Description

–
Features
  • 5-20R
  • Leviton's Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are compliant with UL 1449 Standards. Leviton's outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.

Specifications
  • Termination: Back or Side Wire
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Joules Rating: 720
  • Flammability: Rated V-2 per UL 94
  • NEMA: WD-6
  • Line Contacts: Brass Triple-Wipe
  • Current Limiting: Full Rated Current
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Terminal Screws: Brass-Plated Steel
  • MCOV: 150V rms
  • Yoke: Zinc-Plated Steel
  • VPR: L-N: 600V, L-G: 700V, N-G: 600V
  • Maximum Surge Current, Per Mode (Per Phase): 27kA (L-N:18kA, L-G:9kA)
  • Pole: 2
  • Terminal Accom.: 14-10 AWG
  • Warranty: 5-Year Limited
  • Product ID: Ratings are permanently marked on device
  • Amperage: 20 A
  • Operating Temperature: -40 °C to 60 °C
  • Diagnostics: Indicator Light
  • Agency Certifications: UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3
  • Grounding Screw: Brass-Plated Steel
  • Noise Rejection: -30dB at 500kHz-30MHz
  • Body Material: Thermoplastic Nylon
  • Torque Range: 14-16 inch pounds
  • Shutter Mechanism: Delrin Acetal
  • Grade: Commercial Specification Grade
  • Face Material: Thermoplastic Nylon
  • Nominal Discharge Current Rating: 3kA
  • RoHS Compliant: FALSE
  • ANSI: C-73
  • Voltage: 125 VAC
  • Clamp Nuts: Zinc-Plated Steel
  • Short Circuit Current Rating: 5kA
  • NOM: 57
  • At Rated Voltage: 1 HP
  • Country of Origin: Mexico
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Color: Ivory
  • Brand: Decora Plus
  • Device Type: Duplex Receptacle Outlet
  • Function: Surge Protective Isolated Ground

Specs

–
Series:

Decora Plus

Product Type:

Duplex Receptacle

Amperage:

20

Poles:

2

Terminations:

Back Wire

Side Wire

Grade:

Commercial

Warranty:

5 years

Country of Origin:

Mexico

Material:

Thermoplastic Nylon

Color:

Ivory

NEMA Rating:

WD-6
