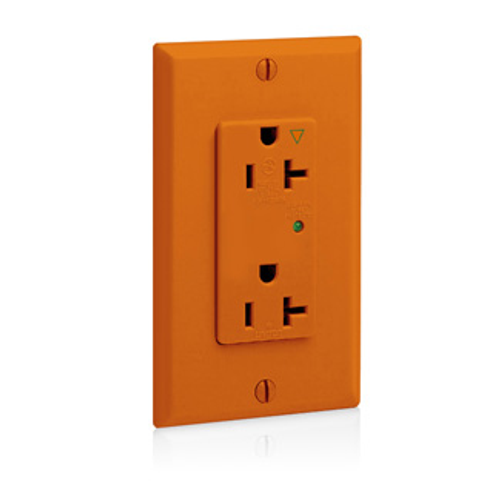

Main product image of Decora Plus SuRGe Protective Isolated Ground Duplex Receptacle Outlet, 20A, 125V Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire (Orange)
Magnifying glass
Hover image to zoom

Decora Plus SuRGe Protective Isolated Ground Duplex Receptacle Outlet, 20A, 125V Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire (Orange)

Brand:
Leviton
SKU:
5380-IGO
Rating:
(0)
Q&A:
(0)
Decora Plus SuRGe Protective Isolated Ground Duplex Receptacle Outlet, 20A, 125V Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire (Orange)
Magnifying glass
Hover image to zoom
$64.46 each
Out of Stock
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Warranty
5 years Warranty
Product Highlight: Grade
Commercial
Product Highlight: Material
Thermoplastic Nylon
Product Highlight: Amperage
20 Amps
Product Highlight: Color
Orange

Description

–
Features
  • Leviton's Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are compliant with UL 1449 Standards. Leviton's outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.
  • 5-20R

Specifications
  • Current Limiting: Full Rated Current
  • Terminal Screws: Brass-Plated Steel
  • Body Material: Thermoplastic Nylon
  • Dielectric Voltage: Withstands 2000V per UL498
  • At Rated Voltage: 1 HP
  • Wire: 3
  • Short Circuit Current Rating: 5kA
  • ANSI: C-73
  • NEMA: WD-6
  • NOM: 57
  • Termination: Back or Side Wire
  • Face Material: Thermoplastic Nylon
  • Brand: Decora Plus
  • Joules Rating: 720
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Warranty: 5-Year Limited
  • Yoke: Zinc-Plated Steel
  • MCOV: 150V rms
  • Torque Range: 14-16 inch pounds
  • Color: Orange
  • Voltage: 125 VAC
  • Function: Surge Protective Isolated Ground
  • Amperage: 20 A
  • Terminal Accom.: 14-10 AWG
  • Flammability: Rated V-2 per UL 94
  • VPR: L-N: 600V, L-G: 700V, N-G: 600V
  • Noise Rejection: -30dB at 500kHz-30MHz
  • Nominal Discharge Current Rating: 3kA
  • Clamp Nuts: Zinc-Plated Steel
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Operating Temperature: -40 °C to 60 °C
  • Grounding Screw: Brass-Plated Steel
  • Maximum Surge Current, Per Mode (Per Phase): 27kA (L-N:18kA, L-G:9kA)
  • Line Contacts: Brass Triple-Wipe
  • Diagnostics: Indicator Light
  • Pole: 2
  • Agency Certifications: UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3
  • Shutter Mechanism: Delrin Acetal
  • Product ID: Ratings are permanently marked on device
  • Device Type: Duplex Receptacle Outlet
  • RoHS Compliant: FALSE
  • Country of Origin: Mexico
  • Grade: Commercial Specification Grade

Specs

–
Series:

Decora Plus

Poles:

2

Warranty:

5 years

NEMA Rating:

WD-6

Grade:

Commercial

Material:

Thermoplastic Nylon

Terminations:

Side Wire

Back Wire

Product Type:

Duplex Receptacle

Amperage:

20

Color:

Orange

Country of Origin:

Mexico
