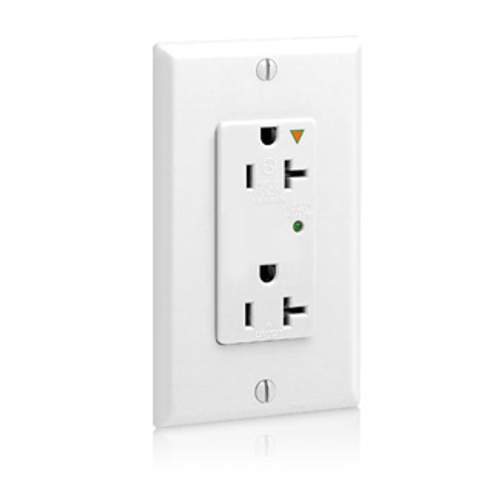

Decora Plus SuRGe Protective Isolated Ground Duplex Receptacle Outlet, 20A, 125V Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire (White)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$64.46 each
Out of Stock
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Commercial
5 years Warranty
White
Thermoplastic Nylon
20 Amps
Description
–
Features
Specifications
- Leviton's Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are compliant with UL 1449 Standards. Leviton's outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.
- 5-20R
Specifications
- Yoke: Zinc-Plated Steel
- Maximum Surge Current, Per Mode (Per Phase): 27kA (L-N:18kA, L-G:9kA)
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Voltage: 125 VAC
- Color: White
- Grounding Screw: Brass-Plated Steel
- VPR: L-N: 600V, L-G: 700V, N-G: 600V
- Pole: 2
- Function: Surge Protective Isolated Ground
- Device Type: Duplex Receptacle Outlet
- Terminal Accom.: 14-10 AWG
- Operating Temperature: -40 °C to 60 °C
- Torque Range: 14-16 inch pounds
- Product ID: Ratings are permanently marked on device
- NOM: 57
- Shutter Mechanism: Delrin Acetal
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Clamp Nuts: Zinc-Plated Steel
- Grade: Commercial Specification Grade
- Amperage: 20 A
- NEMA: WD-6
- Country of Origin: Mexico
- Current Limiting: Full Rated Current
- Face Material: Thermoplastic Nylon
- RoHS Compliant: FALSE
- Warranty: 5-Year Limited
- Noise Rejection: -30dB at 500kHz-30MHz
- Brand: Decora Plus
- Flammability: Rated V-2 per UL 94
- Body Material: Thermoplastic Nylon
- Diagnostics: Indicator Light
- MCOV: 150V rms
- Short Circuit Current Rating: 5kA
- ANSI: C-73
- Terminal Screws: Brass-Plated Steel
- Line Contacts: Brass Triple-Wipe
- Agency Certifications: UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3
- Termination: Back or Side Wire
- At Rated Voltage: 1 HP
- Joules Rating: 720
- Wire: 3
- Nominal Discharge Current Rating: 3kA
- Dielectric Voltage: Withstands 2000V per UL498
Specs
–
| Product Type: | Duplex Receptacle |
|---|---|
| Grade: | Commercial |
| Country of Origin: | Mexico |
| Terminations: | Side Wire Back Wire |
| Warranty: | 5 years |
| Series: | Decora Plus |
| Color: | White |
| Material: | Thermoplastic Nylon |
| NEMA Rating: | WD-6 |
| Amperage: | 20 |
| Poles: | 2 |
