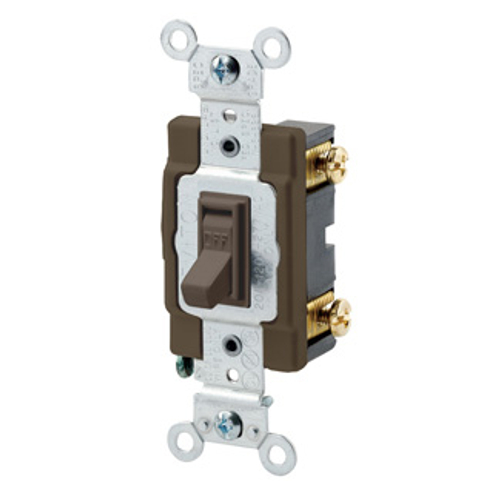

15A, 120/277V Toggle Framed Single-pole AC Quiet Switch, Commercial Grade, Grounding, Side Wired(Brown)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$4.12 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Thermoplastic
Brown
Commercial
15 Amps
10 years Warranty
Description
–
Features
Specifications
- Leviton's Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.
Specifications
- Function: Single-Pole
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Screw Terminal Torque: 14-18 in-lbs
- Grade: Commercial Specification Grade
- UL Fed Spec WS896E: File #E7458
- Warranty: 10-Year Limited
- Operating Temperature: -40 °C to 65 °C
- Flammability: Rated V-2 per UL 94
- Feature 3: Framed
- HP Rating: 1/2HP-120V 2HP-240V-277V
- Terminal Screws: Steel 8-32
- UL Standard: UL 20
- Voltage: 120/277 VAC
- RoHS Compliant: FALSE
- NOM: 57
- Strap Material: Steel
- CSA C22.2 No. 111: File #152105
- Termination: Side Wire
- Max. Amperage: 12 Amp
- Warranty: 10-Year Limited
- Cover Material: Nylon
- Base Material: PBT
- Terminal Accom.: 14-12 AWG
- NEMA: WD-1 & WD-6
- ANSI: C-73
- Toggle: Polycarbonate
- Contacts: Silver-Cadmium .031 Thick
- Country of Origin: Please Contact Customer Service
- Product ID: Stamped on Strap
- Dielectric Voltage: Withstands 1500V for 1 minute
- Color: Brown
- Body Material: Thermoplastic
- Temperature Rise: Maximum 30 degrees C rise
- Actuator Material: Thermoplastic
- Device Type: Toggle Switch
- Amperage: 15 A
Specs
–
| NEMA Rating: | WD-1 |
|---|---|
| Material: | Thermoplastic |
| Color: | Brown |
| Grade: | Commercial |
| Amperage: | 15 |
| Warranty: | 10 years |
| Terminations: | Side Wire |
| Product Type: | Toggle Switch |
