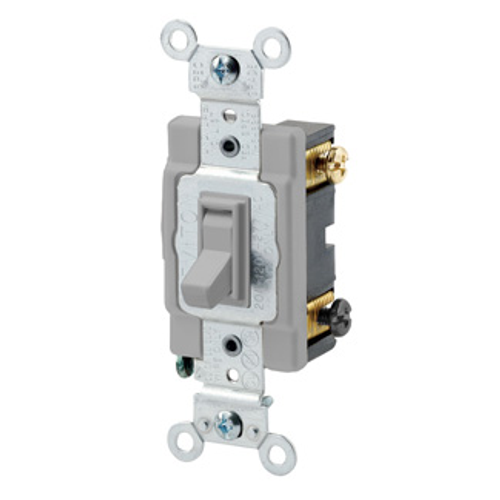

15A, 120/277V Toggle Framed Single-pole AC Quiet Switch, Commercial Spec Grade, Grounding, Side Wired, (Gray)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$3.89 each
In Stock
Get 21 Thu, Jun 25
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
10 years Warranty
15 Amps
Thermoplastic
Commercial
Gray
Description
–
Features
Specifications
- Leviton's Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.
Specifications
- Device Type: Toggle Switch
- Amperage: 15 A
- Function: Single-Pole
- Actuator Material: Thermoplastic
- CSA C22.2 No. 111: File #152105
- NOM: 57
- Strap Material: Steel
- Cover Material: Nylon
- ANSI: C-73
- Screw Terminal Torque: 14-18 in-lbs
- Warranty: 10-Year Limited
- Operating Temperature: -40 °C to 65 °C
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Warranty: 10-Year Limited
- NEMA: WD-1 & WD-6
- Terminal Screws: Steel 8-32
- UL Fed Spec WS896E: File #E7458
- Temperature Rise: Maximum 30 degrees C rise
- Country of Origin: Please Contact Customer Service
- Color: Gray
- Contacts: Silver-Cadmium .031 Thick
- Max. Amperage: 12 Amp
- Voltage: 120/277 VAC
- Grade: Commercial Specification Grade
- Feature 3: Framed
- Base Material: PBT
- RoHS Compliant: TRUE
- Body Material: Thermoplastic
- Dielectric Voltage: Withstands 1500V for 1 minute
- Flammability: Rated V-2 per UL 94
- Terminal Accom.: 14-12 AWG
- Product ID: Stamped on Strap
- Termination: Side Wire
- UL Standard: UL 20
- Toggle: Polycarbonate
- HP Rating: 1/2HP-120V 2HP-240V-277V
Specs
–
| Terminations: | Side Wire |
|---|---|
| Warranty: | 10 years |
| Amperage: | 15 |
| Product Type: | Toggle Switch |
| Material: | Thermoplastic |
| NEMA Rating: | WD-1 |
| Grade: | Commercial |
| Color: | Gray |
