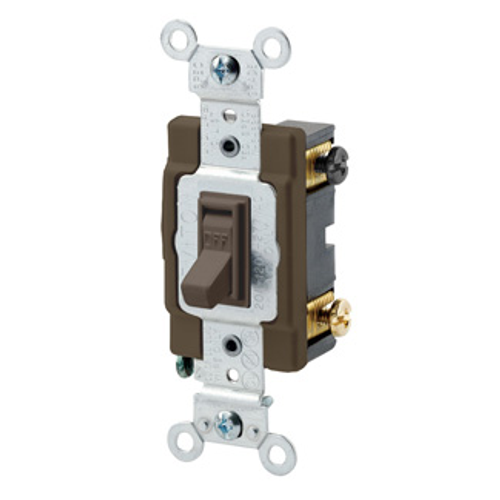

15A, 120/277V Toggle Framed Double-pole AC Quiet Switch, Commercial Spec Grade, Grounding, Side Wired(Brown)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$10.90 each
In Stock
Get 3 Tue, Jul 7
Order by today, receive Tuesday
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Brown
Commercial
10 years Warranty
Thermoplastic
15 Amps
Description
–
Features
Specifications
- Leviton's Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.
Specifications
- Function: Double-Pole
- Body Material: Thermoplastic
- HP Rating: 1/2HP-120V 2HP-240V-277V
- UL Standard: UL 20
- Device Type: Toggle Switch
- Temperature Rise: Maximum 30 degrees C rise
- Terminal Accom.: 14-12 AWG
- Color: Brown
- Cover Material: Nylon
- Dielectric Voltage: Withstands 1500V for 1 minute
- Strap Material: Steel
- UL Fed Spec WS896E: File #E7458
- NEMA: WD-1 & WD-6
- Terminal Screws: Steel 8-32
- Screw Terminal Torque: 14-18 in-lbs
- Contacts: Silver-Cadmium .031 Thick
- Voltage: 120/277 VAC
- Toggle: Polycarbonate
- RoHS Compliant: TRUE
- Feature 3: Framed
- Amperage: 15 A
- NOM: 57
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Country of Origin: Please Contact Customer Service
- Product ID: Stamped on Strap
- Base Material: PBT
- Grade: Commercial Specification Grade
- Operating Temperature: -40 °C to 65 °C
- Warranty: 10-Year Limited
- Flammability: Rated V-2 per UL 94
- Max. Amperage: 12 Amp
- Termination: Side Wire
- ANSI: C-73
- Warranty: 10-Year Limited
- Actuator Material: Thermoplastic
- CSA C22.2 No. 111: File #152105
Specs
–
| Color: | Brown |
|---|---|
| Grade: | Commercial |
| Warranty: | 10 years |
| Terminations: | Side Wire |
| NEMA Rating: | WD-1 |
| Product Type: | Toggle Switch |
| Material: | Thermoplastic |
| Amperage: | 15 |
