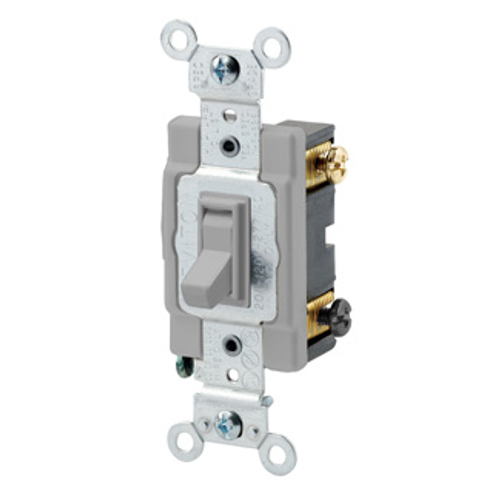

15A, 120/277V Toggle Framed 3-way AC Quiet Switch, Commercial Spec Grade, Grounding, Side Wired, (Gray)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$7.30 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
15 Amps
10 years Warranty
Commercial
Gray
Thermoplastic
Description
–
Features
Specifications
- Leviton's Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.
Specifications
- Contacts: Silver-Cadmium .031 Thick
- Base Material: PBT
- Flammability: Rated V-2 per UL 94
- Strap Material: Steel
- Warranty: 10-Year Limited
- Country of Origin: Please Contact Customer Service
- Temperature Rise: Maximum 30 degrees C rise
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- CSA C22.2 No. 111: File #152105
- Dielectric Voltage: Withstands 1500V for 1 minute
- Product ID: Stamped on Strap
- Termination: Side Wire
- Voltage: 120/277 VAC
- Amperage: 15 A
- Terminal Screws: Steel 8-32
- Warranty: 10-Year Limited
- HP Rating: 1/2HP-120V 2HP-240V-277V
- UL Fed Spec WS896E: File #E7458
- NEMA: WD-1 & WD-6
- ANSI: C-73
- Device Type: Toggle Switch
- Feature 3: Framed
- Screw Terminal Torque: 14-18 in-lbs
- Function: 3-Way
- NOM: 57
- Terminal Accom.: 14-12 AWG
- Max. Amperage: 12 Amp
- Operating Temperature: -40 °C to 65 °C
- UL Standard: UL 20
- Actuator Material: Thermoplastic
- RoHS Compliant: FALSE
- Body Material: Thermoplastic
- Color: Gray
- Cover Material: Nylon
- Toggle: Polycarbonate
- Grade: Commercial Specification Grade
Specs
–
| Terminations: | Side Wire |
|---|---|
| Amperage: | 15 |
| Warranty: | 10 years |
| Grade: | Commercial |
| Color: | Gray |
| Material: | Thermoplastic |
| Product Type: | Toggle Switch |
| NEMA Rating: | WD-1 |
