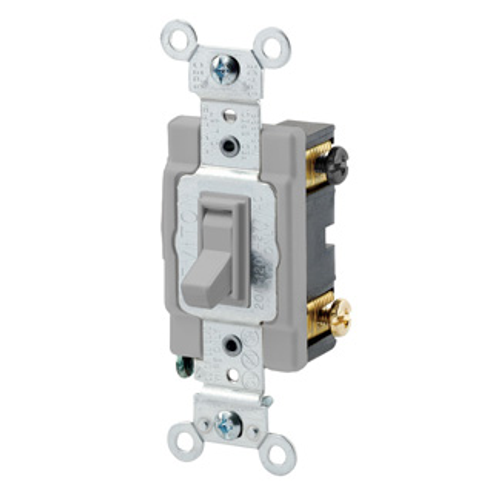

15A, 120/277V Toggle Framed 4-way AC Quiet Switch, Commercial Spec Grade, Grounding, Side Wired, (Gray)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$13.42 each
In Stock
Get 6 Tomorrow, Jul 7
Order by 6PM, receive Tomorrow
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Commercial
10 years Warranty
15 Amps
Thermoplastic
Gray
Description
–
Features
Specifications
- Leviton's Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.
Specifications
- Product ID: Stamped on Strap
- Amperage: 15 A
- Device Type: Toggle Switch
- Flammability: Rated V-2 per UL 94
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- NOM: 57
- Terminal Accom.: 14-12 AWG
- Cover Material: Nylon
- Body Material: Thermoplastic
- UL Fed Spec WS896E: File #E7458
- Toggle: Polycarbonate
- Warranty: 10-Year Limited
- RoHS Compliant: FALSE
- Dielectric Voltage: Withstands 1500V for 1 minute
- Temperature Rise: Maximum 30 degrees C rise
- ANSI: C-73
- Screw Terminal Torque: 14-18 in-lbs
- Voltage: 120/277 VAC
- CSA C22.2 No. 111: File #152105
- UL Standard: UL 20
- HP Rating: 1/2HP-120V 2HP-240V
- Function: 4-Way
- Color: Gray
- Contacts: Silver-Cadmium .031 Thick
- Country of Origin: Please Contact Customer Service
- Operating Temperature: -40 °C to 65 °C
- Base Material: PBT
- Feature 3: Framed
- Termination: Side Wire
- Actuator Material: Polycarbonate
- Grade: Commercial Specification Grade
- Max. Amperage: 12 Amp
- Strap Material: Steel
- Terminal Screws: Steel 8-32
- NEMA: WD-1 & WD-6
Specs
–
| Product Type: | Toggle Switch |
|---|---|
| Terminations: | Side Wire |
| Grade: | Commercial |
| Warranty: | 10 years |
| Amperage: | 15 |
| Material: | Thermoplastic |
| NEMA Rating: | WD-1 |
| Color: | Gray |
