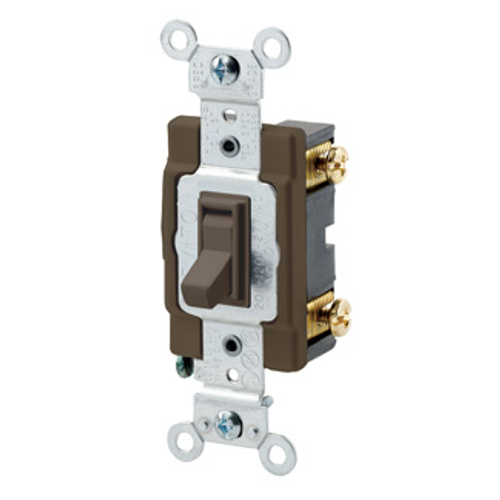

20A, 120/277V Toggle Framed Single-pole AC Quiet Switch, Commercial Spec Grade, Grounding, Side Wired(Brown)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$6.77 each
Out of Stock
Get it Wed, Jul 22 - Wed, Jul 29
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Brown
Thermoplastic
Commercial
10 years Warranty
20 Amps
Description
–
Features
Specifications
- Leviton's Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.
Specifications
- Temperature Rise: Maximum 30 degrees C rise
- Termination: Side Wire
- Color: Brown
- Grade: Commercial Specification Grade
- Feature 3: Framed
- Dielectric Voltage: Withstands 1500V for 1 minute
- RoHS Compliant: TRUE
- Device Type: Toggle Switch
- UL Standard: UL 20
- CSA C22.2 No. 111: File #152105
- Warranty: 10-Year Limited
- Body Material: Thermoplastic
- Terminal Screws: Steel 8-32
- Warranty: 10-Year Limited
- Strap Material: Steel
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Amperage: 20 A
- Terminal Accom.: 14-12 AWG
- HP Rating: 1HP-120V 2HP-240V-277V
- Base Material: PBT
- NOM: 57
- Country of Origin: Please Contact Customer Service
- Cover Material: Nylon
- Product ID: Stamped on Strap
- UL Fed Spec WS896E: File #E7458
- ANSI: C-73
- Toggle: Polycarbonate
- Max. Amperage: 16 Amp
- NEMA: WD-1 & WD-6
- Screw Terminal Torque: 14-18 in-lbs
- Function: Single-Pole
- Operating Temperature: -40 °C to 65 °C
- Voltage: 120/277 VAC
- Actuator Material: Thermoplastic
- Contacts: Silver-Cadmium .031 Thick
- Flammability: Rated V-2 per UL 94
Specs
–
| Product Type: | Toggle Switch |
|---|---|
| NEMA Rating: | WD-1 |
| Color: | Brown |
| Material: | Thermoplastic |
| Terminations: | Side Wire |
| Grade: | Commercial |
| Warranty: | 10 years |
| Amperage: | 20 |
