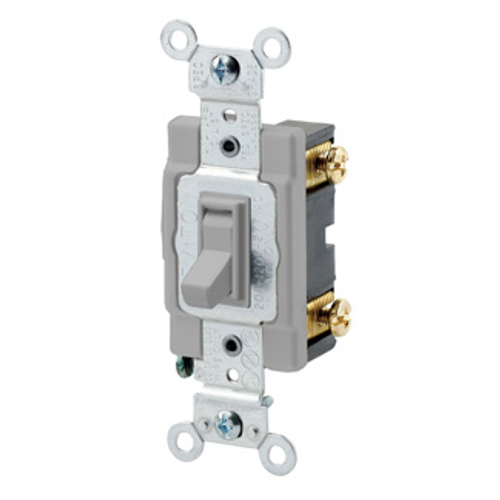

20A, 120/277V Toggle Framed Single-pole AC Quiet Switch, Commercial Spec Grade, Grounding, Side Wired, (Gray)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$6.38 each
In Stock
Get 7 Tue, Jul 7
Order by today, receive Tuesday
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Thermoplastic
Commercial
10 years Warranty
Gray
20 Amps
Description
–
Features
Specifications
- Leviton's Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.
Specifications
- Color: Gray
- Cover Material: Nylon
- Max. Amperage: 16 Amp
- Amperage: 20 A
- Screw Terminal Torque: 14-18 in-lbs
- Warranty: 10-Year Limited
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- UL Standard: UL 20
- NOM: 57
- CSA C22.2 No. 111: File #152105
- Function: Single-Pole
- Toggle: Polycarbonate
- Strap Material: Steel
- Contacts: Silver-Cadmium .031 Thick
- Termination: Side Wire
- Feature 3: Framed
- HP Rating: 1HP-120V 2HP-240V-277V
- NEMA: WD-1 & WD-6
- Product ID: Stamped on Strap
- ANSI: C-73
- Terminal Screws: Steel 8-32
- Grade: Commercial Specification Grade
- Country of Origin: Please Contact Customer Service
- Warranty: 10-Year Limited
- Device Type: Toggle Switch
- Voltage: 120/277 VAC
- RoHS Compliant: FALSE
- Dielectric Voltage: Withstands 1500V for 1 minute
- Terminal Accom.: 14-12 AWG
- Actuator Material: Thermoplastic
- Body Material: Thermoplastic
- Flammability: Rated V-2 per UL 94
- UL Fed Spec WS896E: File #E7458
- Temperature Rise: Maximum 30 degrees C rise
- Operating Temperature: -40 °C to 65 °C
- Base Material: PBT
Specs
–
| Material: | Thermoplastic |
|---|---|
| NEMA Rating: | WD-1 |
| Grade: | Commercial |
| Warranty: | 10 years |
| Color: | Gray |
| Amperage: | 20 |
| Terminations: | Side Wire |
| Product Type: | Toggle Switch |
