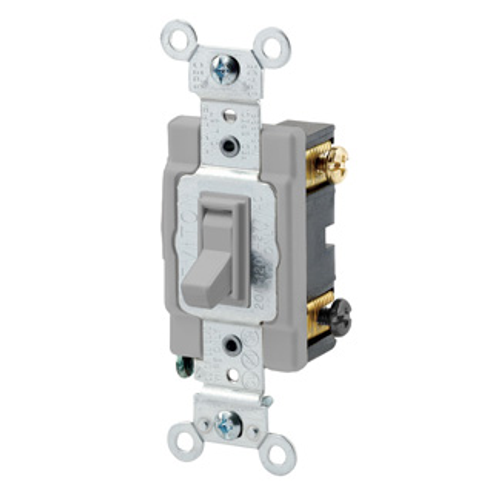

20A, 120/277V Toggle Framed 3-way AC Quiet Switch, Commercial Spec Grade, Grounding, Side Wired, (Gray)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$9.01 each
In Stock
Get 10 Tomorrow, Jul 8
Order by 6PM, receive Tomorrow
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Gray
10 years Warranty
Commercial
20 Amps
Thermoplastic
Description
–
Features
Specifications
- Leviton's Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.
Specifications
- UL Fed Spec WS896E: File #E7458
- Strap Material: Steel
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Flammability: Rated V-2 per UL 94
- Terminal Accom.: 14-12 AWG
- Terminal Screws: Steel 8-32
- NOM: 57
- Termination: Side Wire
- ANSI: C-73
- Warranty: 10-Year Limited
- Temperature Rise: Maximum 30 degrees C rise
- Toggle: Polycarbonate
- Contacts: Silver-Cadmium .031 Thick
- HP Rating: 1HP-120V 2HP-240V-277V
- Grade: Commercial Specification Grade
- Voltage: 120/277 VAC
- UL Standard: UL 20
- Warranty: 10-Year Limited
- Max. Amperage: 16 Amp
- Country of Origin: Please Contact Customer Service
- RoHS Compliant: FALSE
- NEMA: WD-1 & WD-6
- Screw Terminal Torque: 14-18 in-lbs
- Actuator Material: Thermoplastic
- Cover Material: Nylon
- Product ID: Stamped on Strap
- Operating Temperature: -40 °C to 65 °C
- Color: Gray
- Function: 3-Way
- Dielectric Voltage: Withstands 1500V for 1 minute
- Device Type: Toggle Switch
- CSA C22.2 No. 111: File #152105
- Feature 3: Framed
- Amperage: 20 A
- Base Material: PBT
- Body Material: Thermoplastic
Specs
–
| Terminations: | Side Wire |
|---|---|
| Product Type: | Toggle Switch |
| Color: | Gray |
| Warranty: | 10 years |
| NEMA Rating: | WD-1 |
| Grade: | Commercial |
| Amperage: | 20 |
| Material: | Thermoplastic |
