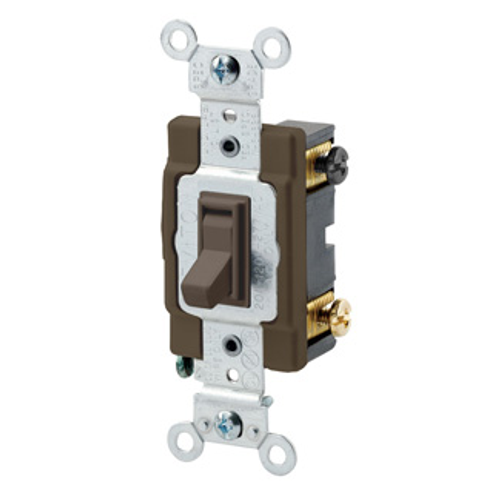

Main product image of 20A, 120/277V Toggle Framed 4-way AC Quiet Switch, Commercial Spec Grade, Grounding, Side Wired(Brown)
Magnifying glass
Hover image to zoom

20A, 120/277V Toggle Framed 4-way AC Quiet Switch, Commercial Spec Grade, Grounding, Side Wired(Brown)

Brand:
Leviton
SKU:
54524-2
Rating:
(0)
Q&A:
(0)
20A, 120/277V Toggle Framed 4-way AC Quiet Switch, Commercial Spec Grade, Grounding, Side Wired(Brown)
Magnifying glass
Hover image to zoom
$24.63 each
Out of Stock
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Color
Brown
Product Highlight: Grade
Commercial
Product Highlight: Amperage
20 Amps
Product Highlight: Material
Thermoplastic
Product Highlight: Warranty
10 years Warranty

Description

–
Features
  • Leviton's Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.

Specifications
  • Cover Material: Nylon
  • Base Material: PBT
  • Actuator Material: Polycarbonate
  • Function: 4-Way
  • Contacts: Silver-Cadmium .031 Thick
  • Amperage: 20 A
  • Body Material: Thermoplastic
  • Voltage: 120/277 VAC
  • Product ID: Stamped on Strap
  • Toggle: Polycarbonate
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Strap Material: Steel
  • HP Rating: 1HP-120V 2HP-240V
  • Temperature Rise: Maximum 30 degrees C rise
  • NOM: 57
  • Feature 3: Framed
  • Termination: Side Wire
  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40 °C to 65 °C
  • Max. Amperage: 16 Amp
  • Warranty: 10-Year Limited
  • Terminal Accom.: 14-12 AWG
  • Country of Origin: Please Contact Customer Service
  • UL Standard: UL 20
  • Terminal Screws: Steel 8-32
  • Device Type: Toggle Switch
  • RoHS Compliant: FALSE
  • Color: Brown
  • Screw Terminal Torque: 14-18 in-lbs
  • ANSI: C-73
  • NEMA: WD-1 & WD-6
  • UL Fed Spec WS896E: File #E7458
  • Grade: Commercial Specification Grade
  • CSA C22.2 No. 111: File #152105
  • Dielectric Voltage: Withstands 1500V for 1 minute

Specs

–
Terminations:

Side Wire

Color:

Brown

Product Type:

Toggle Switch

Grade:

Commercial

Amperage:

20

Material:

Thermoplastic

NEMA Rating:

WD-1

Warranty:

10 years
