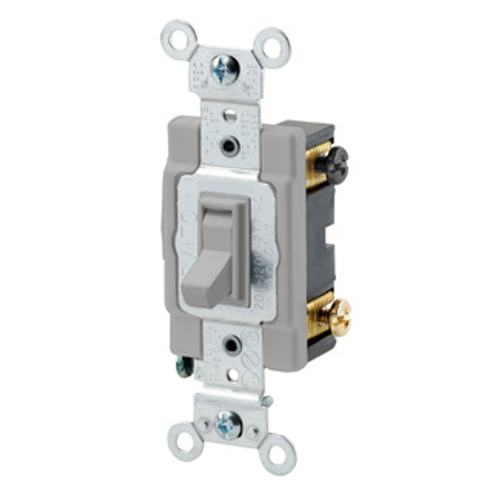

20A, 120/277V Toggle Framed 4-way AC Quiet Switch, Commercial Spec Grade, Grounding, Side Wired, (Gray)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$24.63 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
20 Amps
10 years Warranty
Gray
Thermoplastic
Commercial
Description
–
Features
Specifications
- Leviton's Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.
Specifications
- Flammability: Rated V-2 per UL 94
- Amperage: 20 A
- Termination: Side Wire
- Toggle: Polycarbonate
- Operating Temperature: -40 °C to 65 °C
- Torque Range: 12-14 inch pounds
- UL Fed Spec WS896E: File #E7458
- NOM: 57
- Product ID: Stamped on Strap
- Country of Origin: Please Contact Customer Service
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Base Material: PBT
- Strap Material: Steel
- Dielectric Voltage: Withstands 1500V for 1 minute
- NEMA: WD-1 & WD-6
- Contacts: Silver-Cadmium .031 Thick
- Max. Amperage: 16 Amp
- Terminal Screws: Steel 8-32
- HP Rating: 1HP-120V 2HP-240V
- CSA C22.2 No. 111: File #152105
- Actuator Material: Polycarbonate
- ANSI: C-73
- Function: 4-Way
- Grade: Commercial Specification Grade
- Device Type: Toggle Switch
- Body Material: Thermoplastic
- Warranty: 10-Year Limited
- RoHS Compliant: FALSE
- Voltage: 120/277 VAC
- Cover Material: Nylon
- Temperature Rise: Maximum 30 degrees C rise
- Terminal Accom.: 14-12 AWG
- Feature 3: Framed
- UL Standard: UL 20
- Color: Gray
Specs
–
| Amperage: | 20 |
|---|---|
| Terminations: | Side Wire |
| Product Type: | Toggle Switch |
| Warranty: | 10 years |
| NEMA Rating: | WD-1 |
| Color: | Gray |
| Material: | Thermoplastic |
| Grade: | Commercial |
