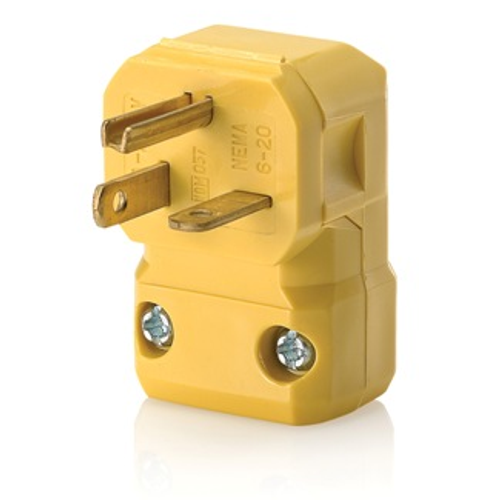

20A, 250V NEMA 6-20P, 2P, 3W, Plug, Straight Blade, Grounding, Python Angle (Yellow)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$19.37 each
In Stock
Get 1 Tomorrow, Jul 8
Order by 6PM, receive Tomorrow
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
20 Amps
2 years Warranty
Yellow
Super Tough Nylon
Description
–
Features
Specifications
- When it comes to the demanding nature of today's commercial and industrial electrical environments, ruggedness and ease of installation are the features you look for first in any line of plugs and connectors. Leviton's Python straight-blade plugs and connectors hold up under the most exacting requirements, the toughest conditions, the roughest handling. Python's exceptional design features meet your needs for a quick, easy-to-wire plug and connector system, a must in today's faced-paced world where lost minutes on a job can translate into lost profits.
- 6-20P
Specifications
- RoHS Compliant: TRUE
- Amperage: 20 A
- UL 498: File E13399
- Warranty: 2-Year Limited
- Cord-Clamp: Nylon
- Voltage: 250 VAC
- Wire: 3
- Clamp Insert: Nylon
- Feature: Angled
- Operating Temperature: -40 °C to 60 °C
- Terminal Accom.: 18-10 AWG
- Product ID: Ratings and NEMA I.D. permanently marked on device
- Dielectric Voltage: Withstands 2000V per UL498
- Brand: Python
- Country of Origin: Mexico
- Blades/Contacts: Solid Brass
- Terminal Screws: Brass
- NEMA: WD-6
- Assembly Screws: Steel, Zinc Plated
- Wire Module: Nylon
- NOM: 57
- Back Cover: Thermoplastic
- Environment: Dry
- Current Interrupting: Certified for current interrupting at full rated current
- Device Type: Straight Blade Plug
- Color: Yellow
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Body Material: Super Tough Nylon
- Cord Range: .245 - .700
- Flammability: Rated V-2 per UL 94
- ANSI: C-73
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Grounding: Grounding
- Pole: 2
- CSA C22.2 No. 42: File LR-406
Specs
–
| Amperage: | 20 |
|---|---|
| Warranty: | 2 years |
| Poles: | 2 |
| Color: | Yellow |
| NEMA Rating: | WD-6 |
| Material: | Super Tough Nylon |
| Product Type: | Straight Blade Plug |
| Series: | Python |
| Country of Origin: | Mexico |
| Ground: | Grounding |
