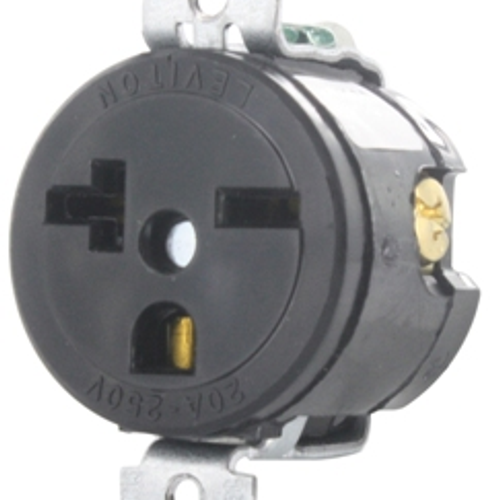

Single Receptacle Outlet, Short Strap, 20A, 250V Side Wire, NEMA 6-20R, 2-Pole, 3-Wire (Black)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$13.12 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
20 Amps
Black
10 years Warranty
Nylon
Description
–
Features
Specifications
- Leviton's line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
- 6-20R
Specifications
- Wire: 3
- Amperage: 20 A
- RoHS Compliant: TRUE
- Grounding: Grounding
- Grounding Screw: Plated Steel
- Country of Origin: Mexico
- Line Contacts: Plated Brass
- Strap Material: Galvanized Steel
- Product ID: Ratings are permanently marked on device
- Dielectric Voltage: Withstands 2000V per UL498
- Face Material: Nylon
- Voltage: 250 VAC
- CSA C22.2 No. 42: File 152105
- Cover Material: Nylon
- Warranty: 10-Year Limited
- Termination: Side Wire
- Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
- NOM: 57
- Color: Black
- Pole: 2
- Flammability: Rated V-2 per UL 94
- Terminal Screws: Plated Steel
- UL498: File E13399
- At Rated Voltage: 2 HP
- Body Material: Nylon
- Operating Temperature: -40 °C to 60 °C
- NEMA: WD-6
- Terminal Accom.: 14-10 AWG
- ANSI: C-73
- Current Interrupting: Certified for current interrupting at full rated current
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Base Material: Nylon
Specs
–
| Ground: | Grounding |
|---|---|
| NEMA Rating: | WD-6 |
| Country of Origin: | Mexico |
| Amperage: | 20 |
| Terminations: | Side Wire |
| Color: | Black |
| Warranty: | 10 years |
| Material: | Nylon |
| Poles: | 2 |
