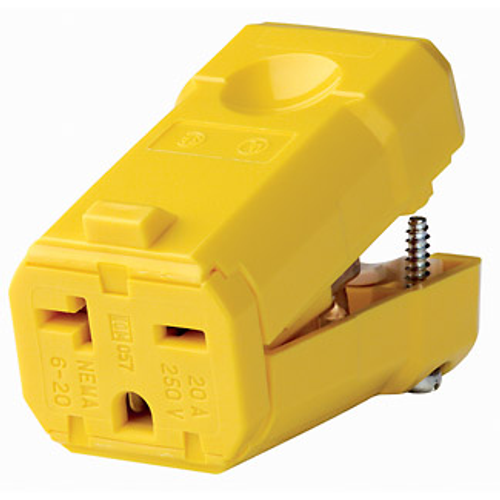

20A, 250V NEMA 6-20R, 2P, 3W, Connector, Straight Blade, Grounding, Python (Yellow)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$24.56 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Yellow
Super Tough Nylon
2 years Warranty
20 Amps
Description
–
Features
Specifications
- When it comes to the demanding nature of today's commercial and industrial electrical environments, ruggedness and ease of installation are the features you look for first in any line of plugs and connectors. Leviton's Python straight-blade plugs and connectors hold up under the most exacting requirements, the toughest conditions, the roughest handling. Python's exceptional design features meet your needs for a quick, easy-to-wire plug and connector system, a must in today's faced-paced world where lost minutes on a job can translate into lost profits.
- 6-20R
Specifications
- Product ID: Ratings and NEMA I.D. permanently marked on device
- CSA C22.2 No. 42: File LR-406
- NOM: 57
- Terminal Screws: Brass
- Current Interrupting: Certified for current interrupting at full rated current
- UL 498: File E13399
- Device Type: Straight Blade Connector
- Blades/Contacts: Solid Brass
- Warranty: 2-Year Limited
- Dielectric Voltage: Withstands 2000V per UL498
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Cord Range: .245 - .700
- ANSI: C-73
- Brand: Python
- Wire Module: Nylon
- Assembly Screws: Steel, Zinc Plated
- NEMA: WD-6
- Cord-Clamp: Nylon
- Clamp Insert: Nylon
- Flammability: Rated V-2 per UL 94
- Body Material: Super Tough Nylon
- Color: Yellow
- Grounding: Grounding
- RoHS Compliant: TRUE
- Terminal Accom.: 18-10 AWG
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Environment: Dry
- Amperage: 20 A
- Back Cover: Thermoplastic
- Pole: 2
- Wire: 3
- Voltage: 250 VAC
- Torque Range: 12-14 in-lbs
- Country of Origin: Mexico
- Operating Temperature: -40 °C to 60 °C
Specs
–
| Color: | Yellow |
|---|---|
| Material: | Super Tough Nylon |
| Series: | Python |
| Ground: | Grounding |
| Poles: | 2 |
| Warranty: | 2 years |
| NEMA Rating: | WD-6 |
| Product Type: | Straight Blade Connector |
| Country of Origin: | Mexico |
| Amperage: | 20 |
