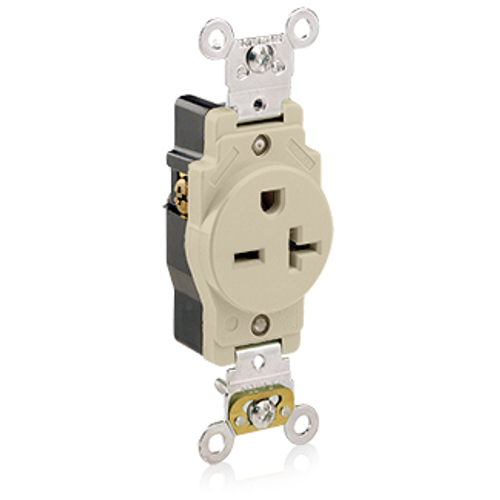

Single Receptacle Outlet, Smooth Face, 20A, 250V Back or Side Wire, NEMA 6-20R, 2-Pole, 3-Wire, Self-Grounding (Ivory)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$17.10 each
In Stock
Get 12 Fri, Jul 10
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Heavy-Duty Industrial
10 years Warranty
20 Amps
Thermoplastic Nylon
Ivory
Description
–
Features
Specifications
- 6-20R
- Leviton's line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
Specifications
- Feature 4: Smooth Face
- UL498: File E13399
- At Rated Voltage: 2 HP
- Wire: 3
- Line Contacts: Brass Triple-Wipe
- Current Limiting: Full Rated Current
- Voltage: 250 VAC
- Body Material: Thermoplastic Nylon
- Torque Range: 14-16 inch pounds
- Color: Ivory
- Pole: 2
- Clamp Nuts: Galvanized Steel
- Face Material: Thermoplastic Nylon
- CSA C22.2 No. 42: File 152105
- NOM: 57
- Flammability: Rated V-2 per UL 94
- Warranty: 10-Year Limited
- Grounding Screw: Plated Steel
- Termination: Back or Side Wire
- UL Fed Spec WC-596: File E13399
- Grade: Heavy-Duty Industrial Specification Grade
- RoHS Compliant: TRUE
- Amperage: 20 A
- Grounding: Self-Grounding
- Device Type: Single Receptacle Outlet
- Product ID: Ratings are permanently marked on device
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Ground Clips: Brass
- NEMA: WD-6
- Terminal Accom.: 14-10 AWG
- ANSI: C-73
- Operating Temperature: -40 °C to 60 °C
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Country of Origin: Please Contact Customer Service
- Strap Material: Zinc-Plated Steel
- Dielectric Voltage: Withstands 2000V per UL498
- Terminal Screws: Plated Brass
Specs
–
| Terminations: | Back Wire Side Wire |
|---|---|
| Grade: | Heavy-Duty Industrial |
| Poles: | 2 |
| NEMA Rating: | WD-6 |
| Ground: | Self-Grounding |
| Product Type: | Single Receptacle |
| Warranty: | 10 years |
| Amperage: | 20 |
| Material: | Thermoplastic Nylon |
| Color: | Ivory |
