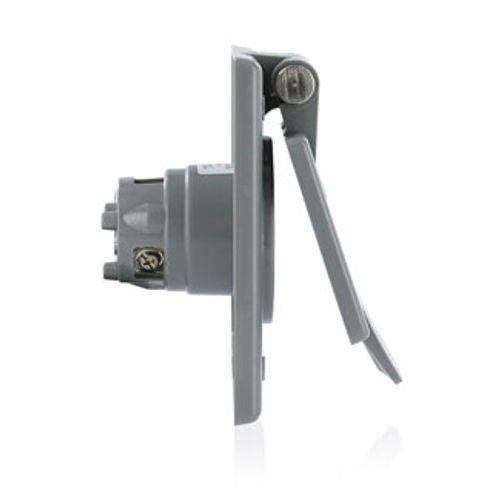

20A, 250V Power Inlet Receptacle, Straight Blade, Industrial Grade
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$31.35 each
In Stock
Get 20 Tomorrow, Jul 9
Order by 6PM, receive Tomorrow
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
10 years Warranty
Nylon
20 Amps
Gray
Description
–
Features
Specifications
- 6-20P
- Leviton's Straight Blade Power Inlets are suitable for industrial indoor and outdoor applications. Glass-filled thermoplastic cover and plate provides outstanding impact resistance and durability. Stainless steel external hardware resists corrosive effects of moisture as dual gaskets, one under plate and one under lid, provide for a superior weather-resistant fit.
Specifications
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Terminal Screws: Brass 10-32
- Product ID: Markings are permanently marked on device
- Line Contacts: Brass
- Flammability: Rated V-2 per UL 94
- Voltage: 250 VAC
- NEMA: WD-6
- Device Type: Straight Blade Flanged Inlet
- UL498: File E13393
- Cover and Plate Material: Glass-Filled Thermoplastic
- Strap Material: Nylon
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Environment: Dry
- Pole: 2
- Face Material: Nylon
- Termination: Standard Wire Wells
- At Rated Voltage: 2 HP
- Country of Origin: United States
- ANSI: C-73
- RoHS Compliant: TRUE
- Wire: 3
- Body Material: Nylon
- Grounding Screw: Brass 8-32
- Amperage: 20 A
- Operating Temperature: -40 °C to 60 °C
- Current Limiting: Full Rated Current
- Warranty: 10-Year Limited
- Dielectric Voltage: Withstands 1500V per UL498
- CSA C22.2 No. 42: File LR-16347
- Terminal Accom.: 18-10 AWG
- Grounding: Grounding
- Color: Gray
Specs
–
| Warranty: | 10 years |
|---|---|
| Terminations: | Standard Wire Wells |
| Product Type: | Straight Blade Flanged Inlet |
| Material: | Nylon |
| Ground: | Grounding |
| Amperage: | 20 |
| Color: | Gray |
| NEMA Rating: | WD-6 |
| Poles: | 2 |
