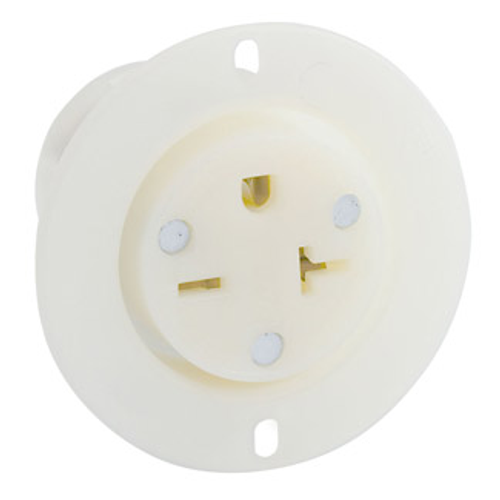

Main product image of 20A, 250V NEMA 6-20r, 2p, 3w, Flanged Outlet Receptacle, Straight Blade, Grounding, Back Wired, Thermoplastic Nylon Strap (White)
Magnifying glass
Hover image to zoom

20A, 250V NEMA 6-20r, 2p, 3w, Flanged Outlet Receptacle, Straight Blade, Grounding, Back Wired, Thermoplastic Nylon Strap (White)

Brand:
Leviton
SKU:
5479-C
Rating:
(0)
Q&A:
(0)
20A, 250V NEMA 6-20r, 2p, 3w, Flanged Outlet Receptacle, Straight Blade, Grounding, Back Wired, Thermoplastic Nylon Strap (White)
Magnifying glass
Hover image to zoom
$17.60 each
Out of Stock
Out of Stock
Get it Tue, Jul 28 - Tue, Aug 4
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Material
Super Tough Nylon
Product Highlight: Amperage
20 Amps
Product Highlight: Color
White
Product Highlight: Warranty
Lifetime Limited Warranty

Description

–
Features
  • 6-20R
  • Leviton's Straight Blade Power Outlets are suitable for industrial indoor and outdoor applications. Glass-filled thermoplastic cover and plate provides outstanding impact resistance and durability. Stainless steel external hardware resists corrosive effects of moisture as dual gaskets, one under plate and one under lid, provide for a superior weather-resistant fit.

Specifications
  • Device Type: Straight Blade Flanged Inlet
  • Assembly Screws: Steel, Zinc Plated
  • Voltage: 250 VAC
  • Country of Origin: Mexico
  • Environment: Dry
  • Pole: 2
  • Color: White
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Current Interrupting: Certified for current interrupting at full rated current
  • Wire: 3
  • NEMA: WD-6
  • Strap Material: Thermoplastic Nylon
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Operating Temperature: -40 °C to 60 °C
  • Warranty: Limited Lifetime Warranty Warranty
  • Dielectric Voltage: Withstands 2000V per UL498
  • Amperage: 20 A
  • Blades/Contacts: Solid Brass
  • Grounding: Grounding
  • Body Material: Super Tough Nylon
  • RoHS Compliant: TRUE
  • Terminal Screws: Brass
  • UL Fed Spec WC-596: File E13393
  • Brand: Black and White
  • Terminal Accom.: 18-10 AWG
  • Termination: Back
  • CSA C22.2 No. 42: File LR-406
  • Face Material: Nylon
  • UL 498: File E13399
  • NOM: 57
  • Flammability: Rated V-2 per UL 94
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Screw Terminal Torque: 10-14 in-lbs
  • Wire Module: Nylon
  • ANSI: C-73

Specs

–
NEMA Rating:

WD-6

Poles:

2

Series:

Black & White

Country of Origin:

Mexico

Material:

Super Tough Nylon

Amperage:

20

Ground:

Grounding

Color:

White

Warranty:

Lifetime Limited

Product Type:

Straight Blade Flanged Inlet

Terminations:

Back Wire
