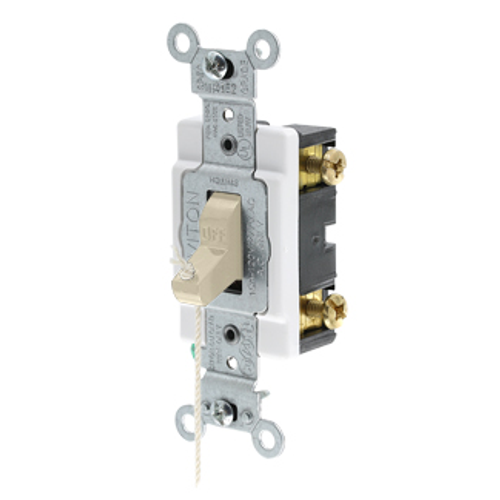

15A, 120/277V Toggle Hospital Call Switch Single-pole AC Quiet Switch, Commercial Spec Grade, Grounding, Side Wired, (Ivory)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$9.38 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
10 years Warranty
15 Amps
Thermoplastic
Ivory
Commercial
Description
–
Features
Specifications
- Leviton's Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.
Specifications
- Body Material: Thermoplastic
- CSA C22.2 No. 111: File #152105
- NEMA: WD-1 & WD-6
- Strap Material: Steel
- Country of Origin: Please Contact Customer Service
- Termination: Side Wire
- Device Type: Hospital Call Switch
- Terminal Accom.: 14-12 AWG
- Contacts: Silver-Cadmium .031 Thick
- Temperature Rise: Maximum 30 degrees C rise
- NOM: 57
- Base Material: PBT
- Actuator Material: Polycarbonate
- Cover Material: Nylon
- Product ID: Stamped on Strap
- Max. Amperage: 12 Amp
- Toggle: Polycarbonate
- Screw Terminal Torque: 14-18 in-lbs
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- RoHS Compliant: TRUE
- ANSI: C-73
- Warranty: 10-Year Limited
- UL Standard: UL 20
- Terminal Screws: Steel 8-32
- UL Fed Spec WS896E: File #E7458
- Operating Temperature: -40 °C to 65 °C
- HP Rating: 1/2HP-120V 2HP-240V
- Grade: Commercial Specification Grade
- Flammability: Rated V-2 per UL 94
- Voltage: 120/277 VAC
- Function: Single-Pole
- Amperage: 15 A
- Dielectric Voltage: Withstands 1500V for 1 minute
- Color: Ivory
Specs
–
| Warranty: | 10 years |
|---|---|
| Amperage: | 15 |
| Material: | Thermoplastic |
| NEMA Rating: | WD-1 |
| Color: | Ivory |
| Grade: | Commercial |
| Terminations: | Side Wire |
| Product Type: | Hospital Call Switch |
