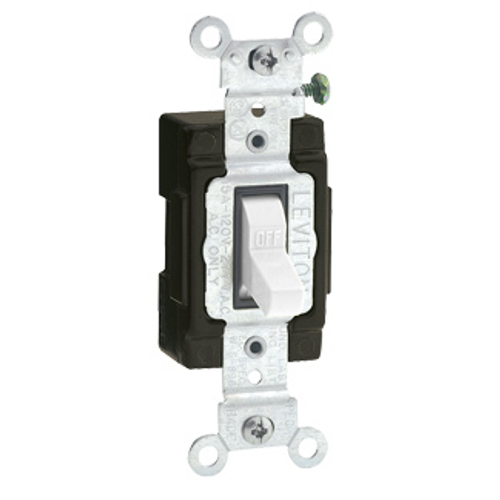

15A, 120V Toggle Lighted Handle, Illuminated Off Single-pole AC Quiet Switch, Commercial Grade, Grounding, Side Wired, (White)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$14.02 each
In Stock
Get 15 Wed, Jul 8
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
15 Amps
Commercial
White
Thermoplastic
Description
–
Features
Specifications
- Leviton's Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.
Specifications
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Grade: Commercial Specification Grade
- Operating Temperature: -40 °C to 65 °C
- Screw Terminal Torque: 14-18 in-lbs
- Dielectric Voltage: Withstands 1500V for 1 minute
- Amperage: 15 A
- Terminal Accom.: 14-12 AWG
- Product ID: Stamped on Strap
- Voltage: 120 VAC
- UL Standard: UL 20
- NOM: 57
- RoHS Compliant: FALSE
- Feature: Illuminated - Load OFF
- NEMA: WD-1 & WD-6
- Function: Single-Pole
- Flammability: Rated V-2 per UL 94
- Actuator Material: Polycarbonate
- Color: White
- CSA C22.2 No. 111: File #152105
- Cover Material: Nylon
- Device Type: Toggle Switch
- Terminal Screws: Steel 8-32
- Contacts: Silver-Cadmium .031 Thick
- Strap Material: Steel
- UL Fed Spec WS896E: File #E7458
- Termination: Side Wire
- Toggle: Polycarbonate
- Temperature Rise: Maximum 30 degrees C rise
- Body Material: Thermoplastic
- Country of Origin: Please Contact Customer Service
- Base Material: PBT
- ANSI: C-73
Specs
–
| NEMA Rating: | WD-1 |
|---|---|
| Amperage: | 15 |
| Product Type: | Toggle Switch |
| Grade: | Commercial |
| Color: | White |
| Terminations: | Side Wire |
| Material: | Thermoplastic |
