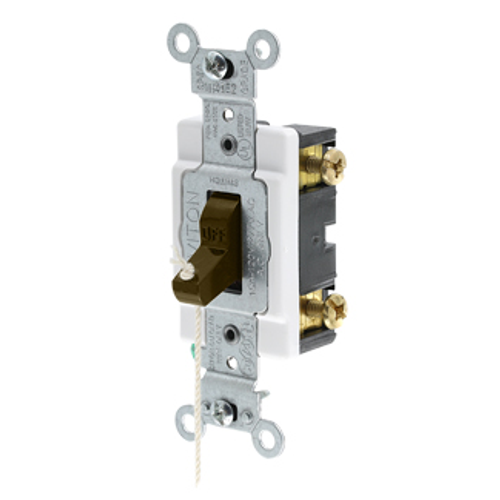

15A, 120/277V Toggle Hospital Call Switch Double-pole AC Quiet Switch, Commercial Grade, Grounding, Side Wired(Brown)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$14.17 each
Out of Stock
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Commercial
Brown
Thermoplastic
15 Amps
10 years Warranty
Description
–
Features
Specifications
- Leviton's Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.
Specifications
- Color: Brown
- ANSI: C-73
- Voltage: 120/277 VAC
- Grade: Commercial Specification Grade
- Strap Material: Steel
- Body Material: Thermoplastic
- Terminal Accom.: 14-12 AWG
- Actuator Material: Polycarbonate
- Temperature Rise: Maximum 30 degrees C rise
- Device Type: Hospital Call Switch
- Dielectric Voltage: Withstands 1500V for 1 minute
- Operating Temperature: -40 °C to 65 °C
- Flammability: Rated V-2 per UL 94
- Toggle: Polycarbonate
- CSA C22.2 No. 111: File #152105
- Function: Double-Pole
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- UL Fed Spec WS896E: File #E7458
- Base Material: PBT
- Screw Terminal Torque: 14-18 in-lbs
- Warranty: 10-Year Limited
- Amperage: 15 A
- NEMA: WD-1 & WD-6
- NOM: 57
- RoHS Compliant: TRUE
- UL Standard: UL 20
- HP Rating: 1/2HP-120V 2HP-240V
- Terminal Screws: Steel 8-32
- Cover Material: Nylon
- Max. Amperage: 12 Amp
- Product ID: Stamped on Strap
- Termination: Side Wire
- Country of Origin: Please Contact Customer Service
- Contacts: Silver-Cadmium .031 Thick
Specs
–
| Terminations: | Side Wire |
|---|---|
| Grade: | Commercial |
| Product Type: | Hospital Call Switch |
| Color: | Brown |
| Material: | Thermoplastic |
| NEMA Rating: | WD-1 |
| Amperage: | 15 |
| Warranty: | 10 years |
