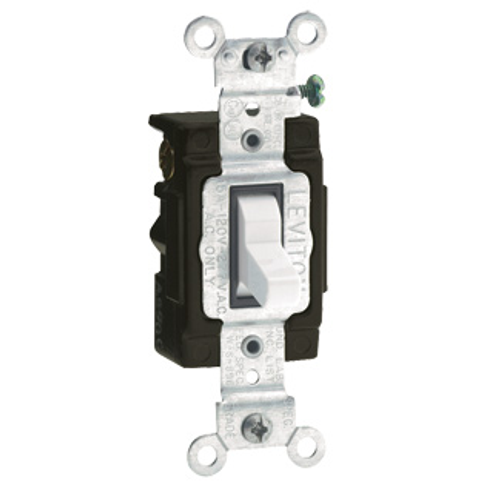

15A, 120V Toggle Lighted Handle, Illuminated Off 3-way AC Quiet Switch, Commercial Grade, Grounding, Side Wired, (White)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$23.73 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
White
Commercial
15 Amps
10 years Warranty
Thermoplastic
Description
–
Features
Specifications
- Leviton's Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.
Specifications
- Color: White
- NOM: 57
- Grade: Commercial Specification Grade
- Device Type: Toggle Switch
- Dielectric Voltage: Withstands 1500V for 1 minute
- Terminal Screws: Steel 8-32
- Screw Terminal Torque: 14-18 in-lbs
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- CSA C22.2 No. 111: File #152105
- Contacts: Silver-Cadmium .031 Thick
- Country of Origin: Please Contact Customer Service
- UL Fed Spec WS896E: File #E7458
- Cover Material: Nylon
- Termination: Side Wire
- Product ID: Stamped on Strap
- Voltage: 120 VAC
- ANSI: C-73
- Operating Temperature: -40 °C to 65 °C
- Flammability: Rated V-2 per UL 94
- Function: Single-Pole
- Base Material: PBT
- Actuator Material: Thermoplastic
- UL Standard: UL 20
- Feature: Lighted Handle - Illuminated OFF|Illuminated - Load OFF
- RoHS Compliant: FALSE
- Warranty: 10-Year Limited
- Toggle: Polycarbonate
- Body Material: Thermoplastic
- NEMA: WD-1 & WD-6
- Temperature Rise: Maximum 30 degrees C rise
- HP Rating: 1/2HP-120V
- Terminal Accom.: 14-12 AWG
- Amperage: 15 A
- Strap Material: Steel
Specs
–
| NEMA Rating: | WD-1 |
|---|---|
| Color: | White |
| Product Type: | Toggle Switch |
| Grade: | Commercial |
| Amperage: | 15 |
| Terminations: | Side Wire |
| Warranty: | 10 years |
| Material: | Thermoplastic |
