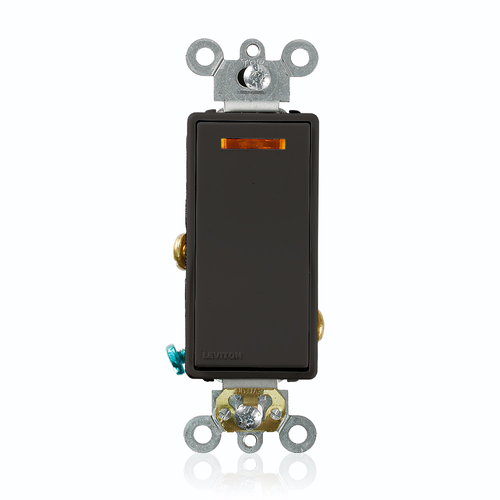

20A, 120v, Decora Plus Rocker Lighted Handle, Illum Off 1-pole AC Quiet Switch, Comm (Black)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$17.23 each
In Stock
Get 15 Thu, Jul 9
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Polyester
Black
20 Amps
Commercial
10 years Warranty
Description
–
Features
Specifications
- Decora brand Plus devices combine designer styling with all the benefits of rugged Commercial Grade construction. The robust product offering includes: single pole, double pole, 3 and 4-way switches, momentary and maintained contact switches, as well as pilot light and illuminated switches.
Specifications
- Endurance: 50,000 cycles minimum
- Voltage: 120 VAC
- Grounding: Self-Grounding
- Warranty: 10-Year Limited
- Device Type: Rocker Switch
- NEMA: WD-1 & WD-6
- Temperature Rise: Maximum 30 degrees C rise
- Body Material: Thermoplastic Polyester
- CSA C22.2 No. 111: File #152105
- Product ID: Stamped on Strap
- Operating Temperature: -40 °C to 65 °C
- Feature: Illuminated - Load OFF
- Function: Single-Pole
- Strap Material: Steel
- Flammability: Rated V-2 per UL 94
- ANSI: C-73
- HP Rating: 1HP-120V
- RoHS Compliant: FALSE
- Color: Black
- Terminal Accom.: 14-#10 AWG back wired; #14-#12 AWG side wired
- Grade: Commercial Specification Grade
- Dielectric Voltage: Withstands 1500V for 1 minute
- Actuator Material: Thermoplastic
- UL Standard: UL 20
- Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
- Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
- Country of Origin: Mexico
- Amperage: 20 A
- Termination: Back or Side Wire
- Screw Terminal Torque: 14-18 in-lbs
- NOM: 57
- Brand: Decora Plus
- Max. Amperage: 16 Amp
Specs
–
| Country of Origin: | Mexico |
|---|---|
| Material: | Polyester |
| Color: | Black |
| Terminations: | Side Wire Back Wire |
| Series: | Decora Plus |
| Amperage: | 20 |
| NEMA Rating: | WD-1 |
| Grade: | Commercial |
| Ground: | Self-Grounding |
| Warranty: | 10 years |
| Product Type: | Rocker Switch |
