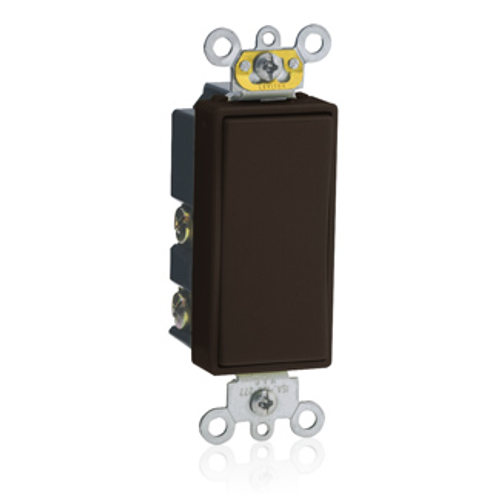

Main product image of 15A 120/277V Decora Plus Rocker Double-Throw Ctr-OFF Momentary Contact AC Quiet Switch (Brown)
Magnifying glass
Hover image to zoom

15A 120/277V Decora Plus Rocker Double-Throw Ctr-OFF Momentary Contact AC Quiet Switch (Brown)

Brand:
Leviton
SKU:
5657-2
Rating:
(0)
Q&A:
(0)
15A 120/277V Decora Plus Rocker Double-Throw Ctr-OFF Momentary Contact AC Quiet Switch (Brown)
Magnifying glass
Hover image to zoom
$47.07 each
Out of Stock
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Color
Brown
Product Highlight: Amperage
15 Amps
Product Highlight: Warranty
10 years Warranty
Product Highlight: Grade
Commercial
Product Highlight: Material
Thermoplastic

Description

–
Features
  • Termination: Back or Side Wire
  • Feature: Momentary Contact CTR OFF
  • NEMA: WD-1 & WD-6
  • ANSI: C-73
  • Product ID: Stamped on Strap
  • Screw Terminal Torque: 14-18 in-lbs
  • Function: Single-Pole Double-Throw
  • Amperage: 15 A
  • Actuator Material: Thermoplastic
  • Device Type: Rocker Switch
  • NOM: 57
  • Brand: Decora Plus
  • Dielectric Voltage: Withstands 1500V for 1 minute
  • Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
  • CSA C22.2 No. 111: File #152105
  • Color: Brown
  • Operating Temperature: -40 °C to 65 °C
  • Warranty: 10-Year Limited
  • Strap Material: Steel
  • RoHS Compliant: FALSE
  • Grade: Commercial Specification Grade
  • Max. Amperage: 12 Amp
  • Temperature Rise: Maximum 30 degrees C rise
  • Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
  • Flammability: Rated V-2 per UL 94
  • HP Rating: 1/2HP-120V 2HP-240V-277V
  • Country of Origin: Mexico
  • Endurance: 30,000 cycles minimum
  • UL Standard: UL 20
  • Terminal Accom.: 14-#10 AWG back wired; #14-#12 AWG side wired
  • Voltage: 120/277 VAC
  • Grounding: Self-Grounding
  • Body Material: Thermoplastic

Specs

–
Ground:

Self-Grounding

Country of Origin:

Mexico

Color:

Brown

Terminations:

Back Wire

Side Wire

Amperage:

15

NEMA Rating:

WD-1

Warranty:

10 years

Grade:

Commercial

Series:

Decora Plus

Product Type:

Rocker Switch

Material:

Thermoplastic
