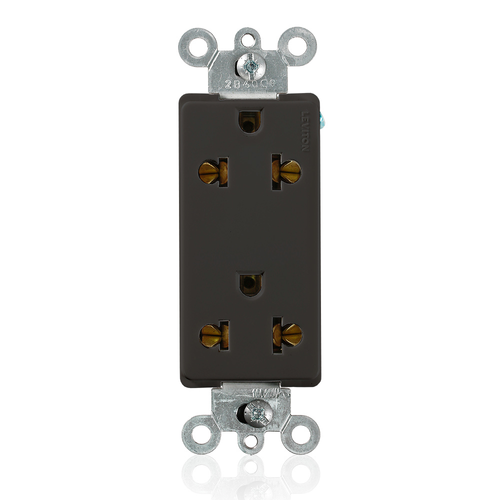

15A Decora Plus Duplex Receptacle/outlet, Commercial Grade Europlug (Black)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$5.11 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
15 Amps
Black
10 years Warranty
Description
–
Features
Specifications
- Leviton has combined the two most popular configurations, a NEMA 5-15 and CEE 7/16 1-15 plug. This two-pin plug is probably the single most widely used international plug, popularly known as the Europlug. The plug is unearthed and has two round, 4 mm pins, which usually converge slightly. It can be inserted into any socket that accepts 4 mm round contacts spaced 19 mm apart. It is described in CEE 7/16 and is also defined in Italian standard CEI 23-5 and Russian standard GOST 7396. The Europlug is used in Class II applications throughout continental Europe (Germany, Austria, Switzerland, Italy, Greece, the Netherlands, Belgium, France, Spain, Portugal, Denmark, Norway, Sweden, Finland, Poland, The Czech Republic, Slovakia, Hungary, Romania, Bulgaria, Lithuania). It is also used in Turkey, the Middle East, and most of Africa and South America (Brazil), as well as the former Soviet republics, and many developing nations. The plug is intended for use with devices that require 2.5 A or less. Because it can be inserted in either direction into the socket, live and neutral are connected at random.
- 5-15R
Specifications
- Strap Material: Zinc Plated Steel
- Amperage: 15 A
- Clamp Nuts: Zinc Plated Steel
- Line Contacts: Brass Triple-Wipe .031 Thick
- Terminal Accom.: 14-10 AWG
- Country of Origin: Mexico
- Termination: Back or Side Wire
- Pole: 2
- Flammability: Rated V-2 per UL 94
- Product ID: Ratings are permanently marked on device
- RoHS Compliant: TRUE
- Dielectric Voltage: Withstands 1500 V per UL498
- Warranty: 10-Year Limited
- At Rated Voltage: 1/2 HP
- Color: Black
- Terminal Screws: Brass 10-32
- NEMA: 5-15R
- Operating Temperature: -40 °C to 60 °C
- Body Material: Thermoplastic Nylon
- Face Material: Thermoplastic Nylon
- Wire: 3
- Grounding Screw: Brass 8-32
- Current Limiting: Full Rated Current
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Voltage: 125/250 VAC
- Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
Specs
–
| Terminations: | Back Wire Side Wire |
|---|---|
| Country of Origin: | Mexico |
| NEMA Rating: | 5-15R |
| Amperage: | 15 |
| Color: | Black |
| Warranty: | 10 years |
| Poles: | 2 |
