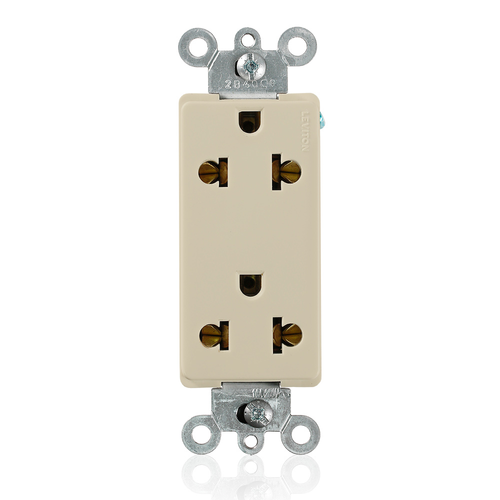

Decora Plus Duplex Receptacle, Straight Blade and Europlug, 15A 125/250V 2P, 3W (Ivory)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$5.11 each
Out of Stock
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
10 years Warranty
Ivory
15 Amps
Description
–
Features
Specifications
- 5-15R
- Leviton has combined the two most popular configurations, a NEMA 5-15 and CEE 7/16 1-15 plug. This two-pin plug is probably the single most widely used international plug, popularly known as the Europlug. The plug is unearthed and has two round, 4 mm pins, which usually converge slightly. It can be inserted into any socket that accepts 4 mm round contacts spaced 19 mm apart. It is described in CEE 7/16 and is also defined in Italian standard CEI 23-5 and Russian standard GOST 7396. The Europlug is used in Class II applications throughout continental Europe (Germany, Austria, Switzerland, Italy, Greece, the Netherlands, Belgium, France, Spain, Portugal, Denmark, Norway, Sweden, Finland, Poland, The Czech Republic, Slovakia, Hungary, Romania, Bulgaria, Lithuania). It is also used in Turkey, the Middle East, and most of Africa and South America (Brazil), as well as the former Soviet republics, and many developing nations. The plug is intended for use with devices that require 2.5 A or less. Because it can be inserted in either direction into the socket, live and neutral are connected at random.
Specifications
- Pole: 2
- Color: Ivory
- Terminal Accom.: 14-10 AWG
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Strap Material: Zinc Plated Steel
- Country of Origin: Mexico
- Termination: Back or Side Wire
- Warranty: 10-Year Limited
- Clamp Nuts: Zinc Plated Steel
- At Rated Voltage: 1/2 HP
- Line Contacts: Brass Triple-Wipe .031 Thick
- Grounding Screw: Brass 8-32
- Wire: 3
- Operating Temperature: -40 °C to 60 °C
- Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
- NEMA: 5-15R
- RoHS Compliant: TRUE
- Face Material: Thermoplastic Nylon
- Terminal Screws: Brass 10-32
- Voltage: 125/250 VAC
- Amperage: 15 A
- Product ID: Ratings are permanently marked on device
- Body Material: Thermoplastic Nylon
- Current Limiting: Full Rated Current
- Flammability: Rated V-2 per UL 94
- Dielectric Voltage: Withstands 1500 V per UL498
Specs
–
| Warranty: | 10 years |
|---|---|
| Color: | Ivory |
| Terminations: | Side Wire Back Wire |
| NEMA Rating: | 5-15R |
| Amperage: | 15 |
| Country of Origin: | Mexico |
| Poles: | 2 |
